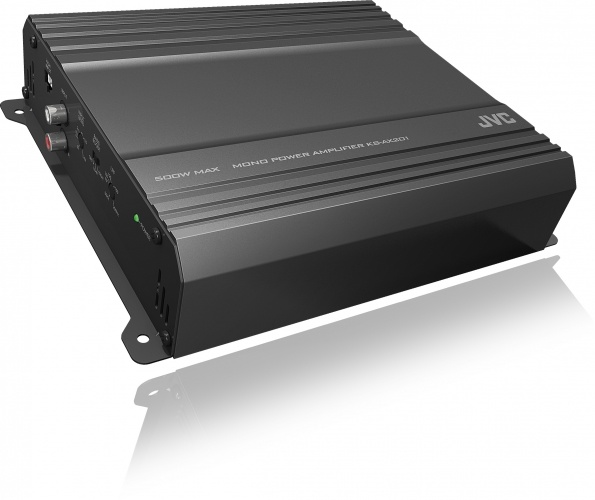

KS-AX201 JVC 500W 1CH AMP

Brand: JVC
|
In stock
Ordered before counting..., delivered tomorrow
Login for prices
Article code KS-AX201
EAN 046838071140
Information

General Features:

  • AX2 Series Monoblock Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohms: 150 watts x 1 chan.
    • 2 ohms: 250 watts x 1 chan.
  • Max power output: 500 watts
  • CEA-2006 Compliant
  • Mono channel operation
  • Speaker-level (high-level) inputs
  • Power On Indicator (GREEN)/Protector Indicator (OFF)
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity: 200mV - 5V
  • Frequency Response: 20 - 200 Hz
  • Total Harmonic Distortion: 0.08% @100 Hz
  • Signal to Noise Ration: 80 dB
  • Variable low-pass filter: 50 - 200 Hz
  • Selectable Bass Boost: Off / Low (+6dB) / High (+12dB) bass boost at 45 Hz
  • 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Fuse Rating: 30A x 1
  • Weight: 3.10 lbs
  • Dimensions: 7.31"W x 8.94"L x 2.00"H
