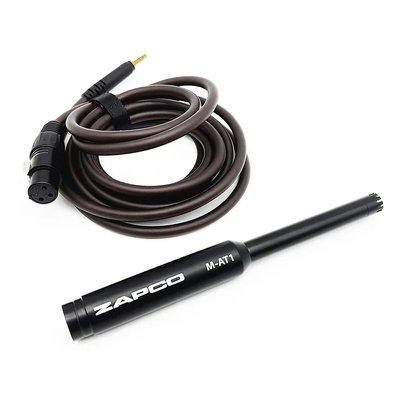

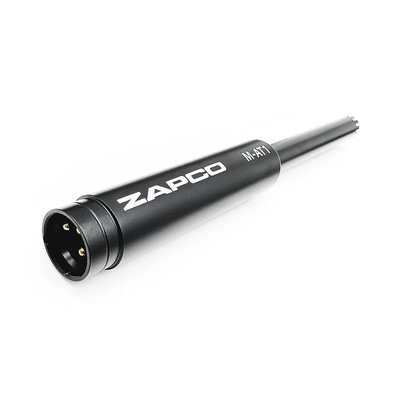

M-AT1 ZAPCO TUNNING MICROPHONE

Specifications

• Microphone for DSP-IV AT Auto Calibration

• Directivity: Omnidirectional

• Frequency Response: 20Hz - 20KHz

• Sensitivity (1KHz, 0dB=1V/1Pa): -44 dB

• S/N (A-Weighted, 1KHz): 60 dBA

• Output Impedance: 1KOhm

• Operating Voltage: 4.5Vdc (10 max)

• Current Consumption: 0.5 mA

• Operating Temperature: -40° - +70°

• Cable Length: 3 mt

• Dimensions (mm): 190(L) x 21(O) x 12.5(O)
