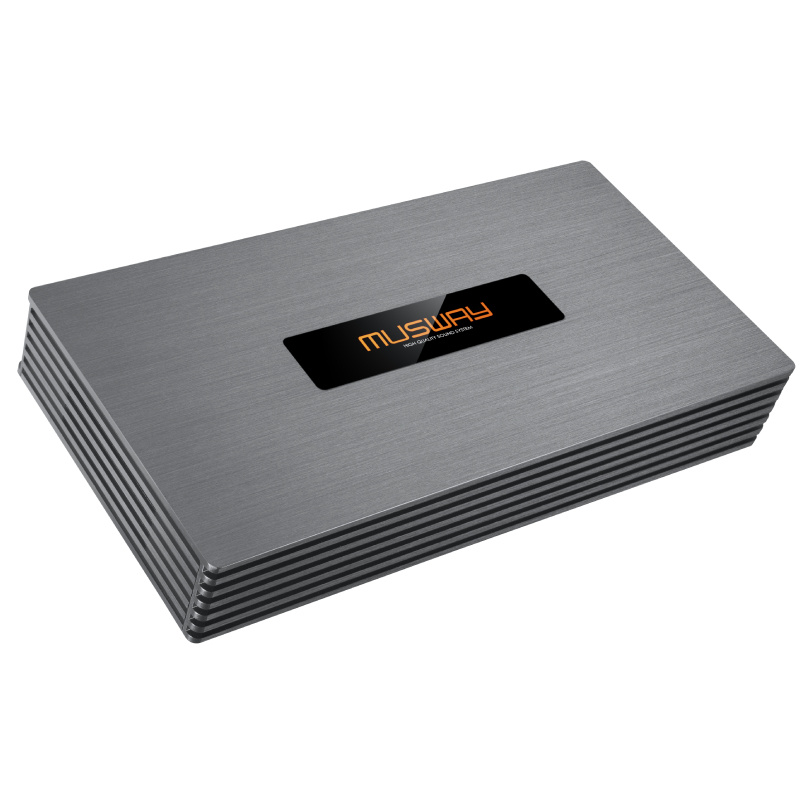

M12 MUSWAY 1500W 12CH AMP/ 16CH DSP

M12 Product Overview

• Start-Stop ready
• EPS (Intelligent High-Level Input-Error Protection System)
• Brushed aluminum heat sink and end panels
• Auto Turn On via DC Offset or Signal Sensing
• Utilizes 4-fold laminated circuit boards that allows for small size and effectively suppresses EMI (RF) interference which is a must with full range Class D amplifiers. Passes the difficult European EMI standards
• Clipping LED’s
• 12 x 85/125 Watts at 4/2 Ohms, 240 Watts at 4 Ohm Bridged

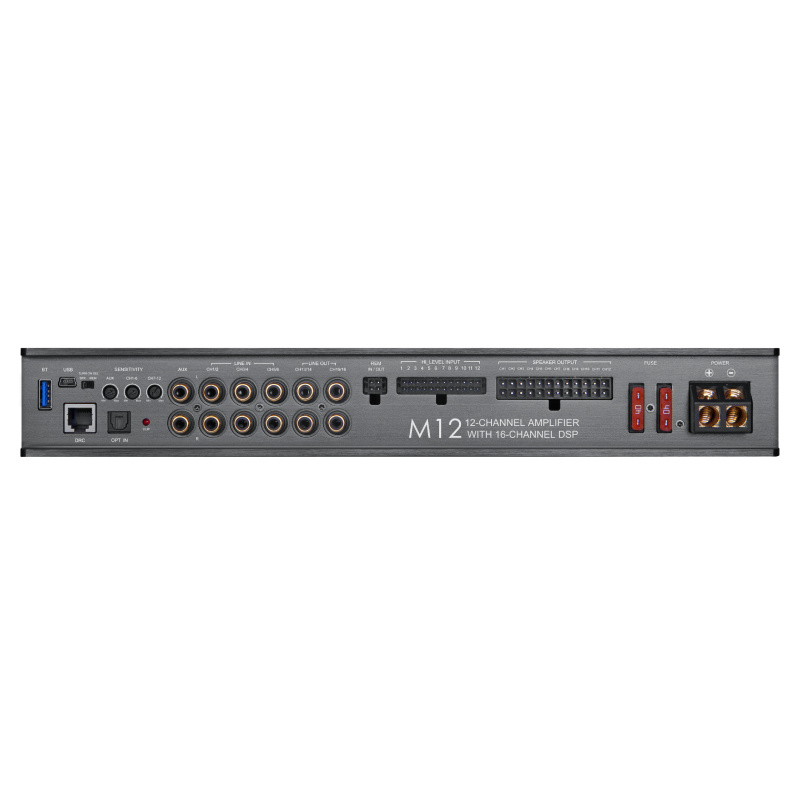

• Inputs: High Level x 12, Low Level (RCA) x 6, AUX/RCA x 2, Optical x 1
• Outputs: High Level x 12, Low Level Pre-Amp Outputs (RCA) x 4 (Configurable via DSP software) up to 6.5 Volts
• Analog Devices Dual 32-Bit processor and Burr-Brown converters-330 MIPS digital input/output up to 192 KHZ sample rate.
• With the easy-to-use MUSWAY PC software, the M12 can be configured perfectly and in real time via PC or the new Musway app for your smartphone or tablet
• With the 3 optional USB Bluetooth dongles you can stream audio, stream aptX HD Hi Res audio, and can have app control for DSP Tuning from your smartphone or tablet. Also available is the optional DRC1 digital remote control with OLED display that puts the control of your audio system at your fingertips.

• Product Specifications:

  • Output Power (RMS) @ 14.4 VDC, 1% THD
  • 4Ohms: 12x70W, Up to 85W per channel
  • 2Ohms: 12x85W, Up to 145W per channel
  • Bridged @ 4Ohms : 240W
  • Distortion - THD (1 kHz @ 4Ohms, 90% Power): 0.05%
  • Bandwidth (-3 dB, 2 V RMS, 4Ohms: 15HZ-22KHZ
  • S/N ratio @ A weighted, 1 V, Max. Power: 95 dB A
  • Input sensitivity: 8V-24V RMS (High-level); 2-6 V RMS (Low-level); 1 - 8 V RMS (AUX)
  • Input impedance: 13 Ohms (High-level); 47 kOhms (Low-level)
  • LOAD IMPEDANCE (MIN): @12CH: 2Ohms @Bridged: 4Ohms
  • Voltage: 8-15 VDC
  • Fuse Rating: 40A x2
  • Dimensions: 340 x 171.5 x 48 mm
