M5-1500X5 RF POWER BR 1500W 5CH AMP

|
Call for availability
Login for prices
Article code M5-1500X5
EAN 780687357979
Information

Rockford Fosgate M5-1500X5

M5 Series marine 5-channel amplifier

M5 Series Element Ready™ amplifier

Rockford Fosgate designed this M5 Series amplifier for marine and powersports environments, using a special "Element Ready" chassis and conformal-coated PC boards to protect against dust and water. The M5-1500X5 amplifier can send 100 watts RMS to four different speakers, plus up to 600 watts RMS to your marine sub. You can adjust the high- and low-pass filters, infrasonic filter, and Rockford Fosgate's famous Punch boost to get the best possible bass from your speakers and subs.

Ready for the great outdoors

The amp also features a UV-stable, powder-coated, cast-aluminum heatsink to help prevent corrosion, while heavy-duty molded connectors protect wiring, keeping out water and dirt. In fact, this amp earned its IPX6 water intrusion rating after being sprayed with 100 liters of water per minute from a distance of 10 feet from all directions for at least 3 minutes. Translation? This amp will deliver reliable power through all kinds of abuse, whether it's out on the water or deep in the wilderness.

Setting it up for optimum performance

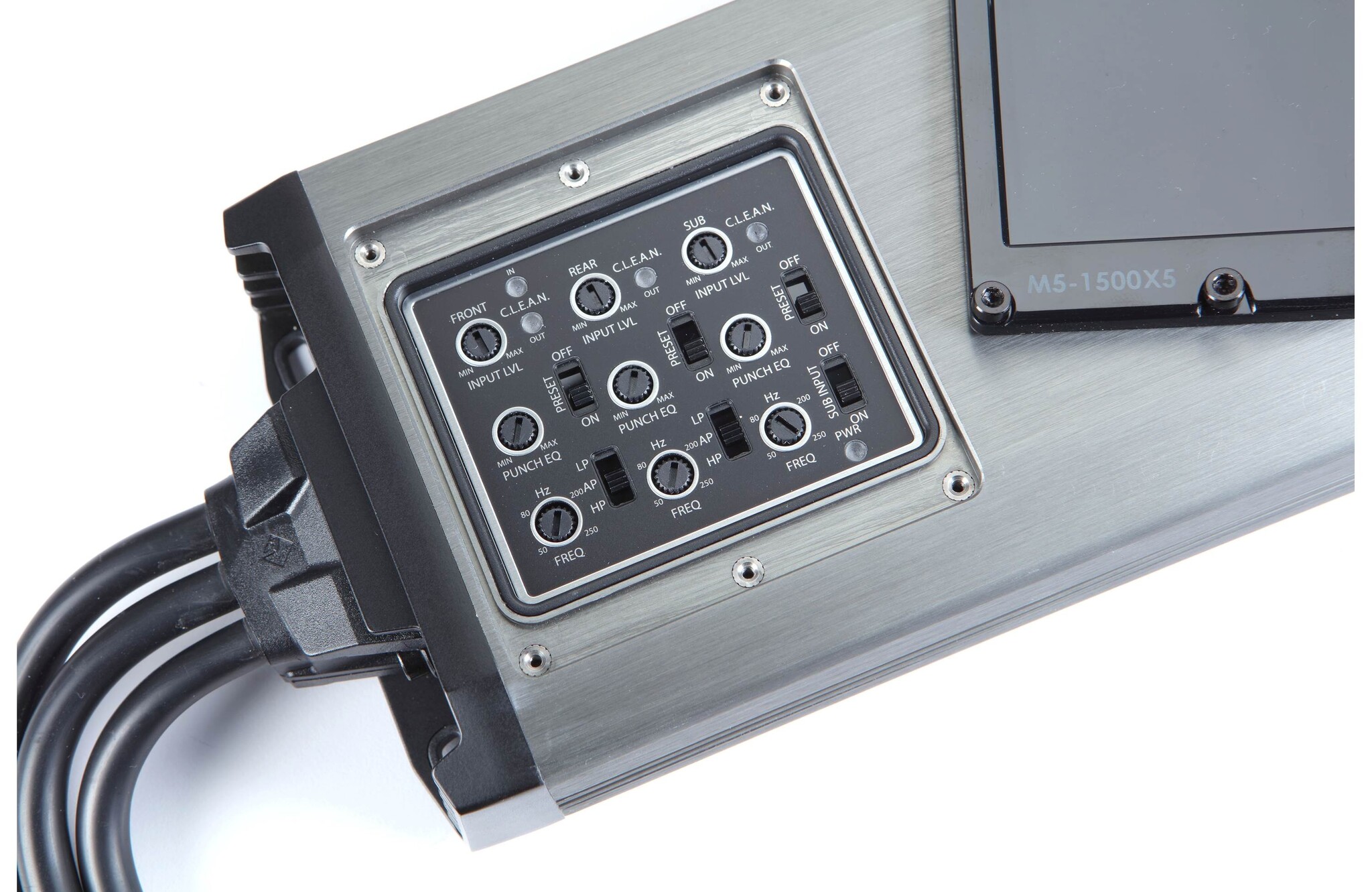

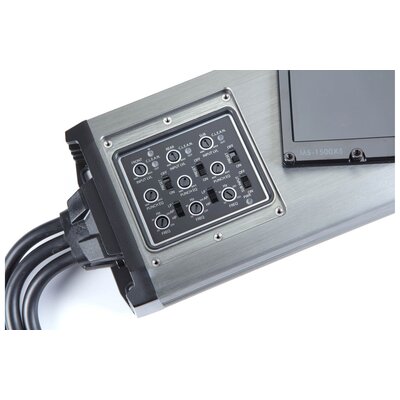

Rockford Fosgate's C.L.E.A.N. technology (Calibrated Level Eliminates Audible Noise) setup system ensures your music will sound as clean and powerful as possible. It's a simple system to use — turn it up until the light shows red, then turn it down until the red light goes out. If you're adding this amp to a Rockford Fosgate UTV audio kit, just press the Preset button and it's instantly tuned for maximum performance.

READ LESS

Product highlights:

  • 5-channel marine subwoofer amplifier
    • 100 watts RMS CTA-2006 x 4 + 400 watts RMS x 1 at 4 ohms
    • 100 watts RMS CTA-2006 x 4 + 600 watts RMS x 1 at 2 ohms
    • 400 watts RMS CTA-2006 x 2 at 4 ohms (sub channel will not operate in bridged mode)
    • max Dynamic Power rating: 200 watts x 4 + 700 watts x 1 at 2 ohms
  • amplifier design: Class AD (channels 1-4); Class BD (sub channel)
  • frequency response: 10-50,000 Hz
  • variable low-pass and high-pass filters (50-250 Hz, 12 dB/octave)
  • switchable subsonic filter (30 Hz, 12 dB/octave)
  • variable bass boost (0-18 dB at 45 Hz)
  • marine features:
    • Element Ready™ chassis and conformal-coated PC boards
    • IPX6 water intrusion rating
    • heavy-duty molded connectors protect wiring from water and dirt
    • Preset button for instant tuning in Rockford Fosgate UTV audio packages
More Info:
  • C.L.E.A.N. gain setup system includes clip lights
  • auto remote turn-on
  • preamp and speaker-level inputs
  • preamp outputs
  • wiring, fuse, and hardware not included with amplifier
    • 4-gauge power and ground leads and a 200-amp fuse recommended
  • dimensions: 4-1/4"W x 1-3/4"H x 12-5/16"D
  • warranty: 2 years
  • MFR # M5-1500X5
