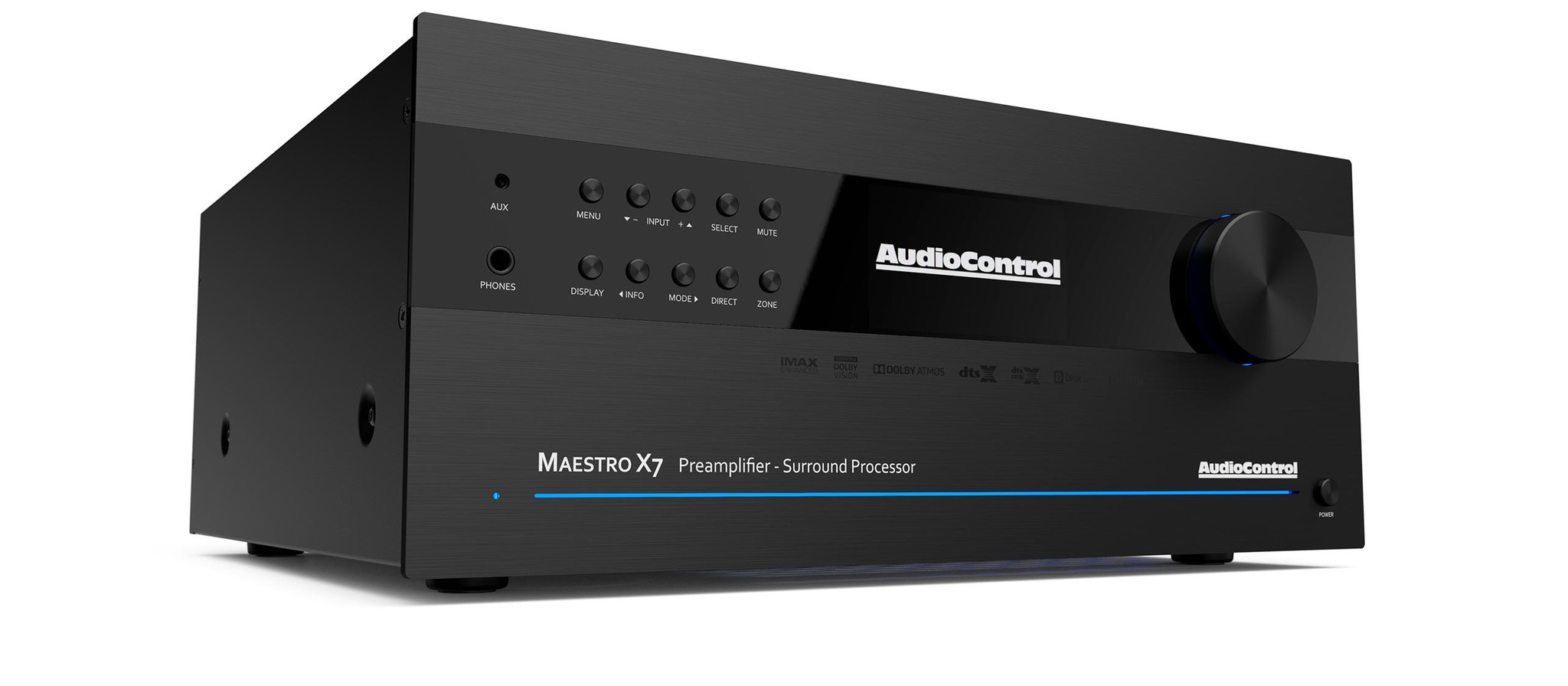

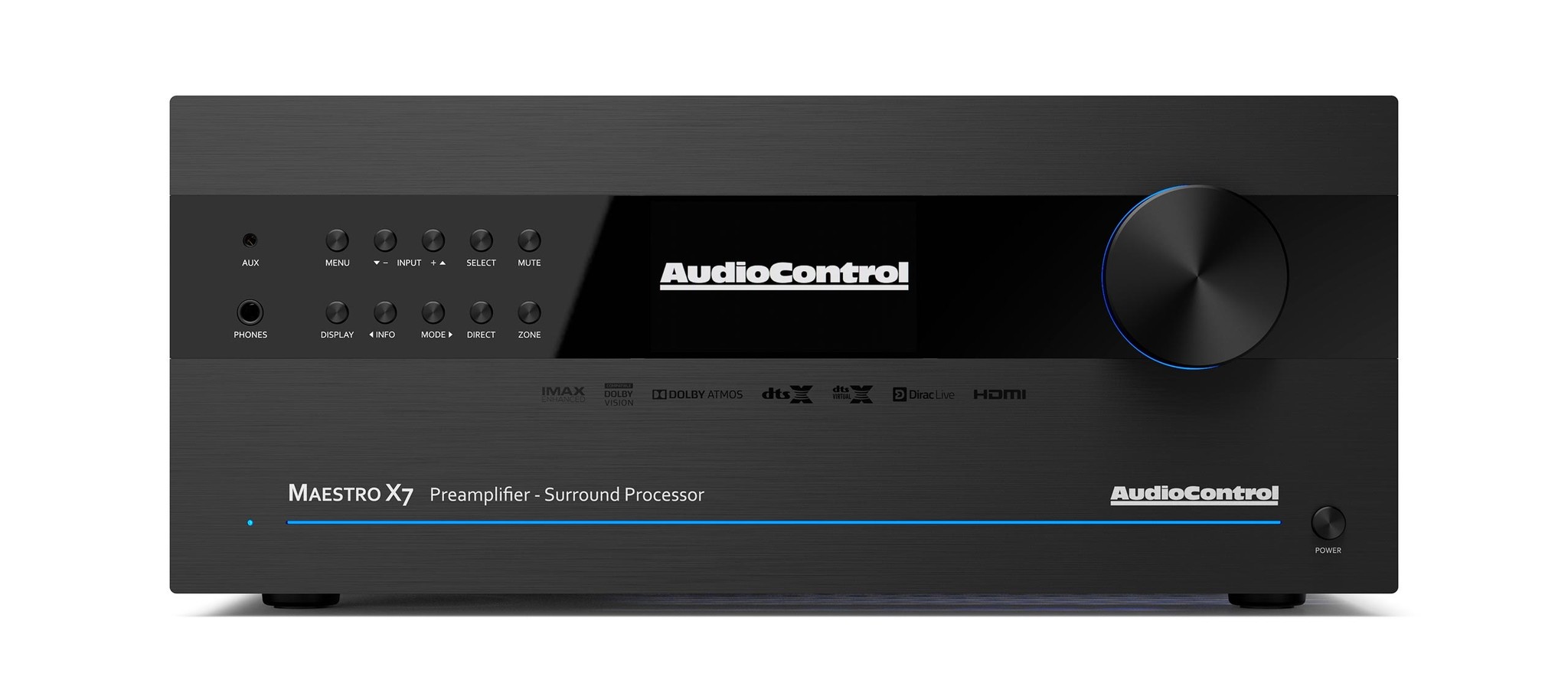

MAESTRO X7 9.1.6 PROCESSOR
Brand:
AUDIO CONTROL
|
| Article code | MAESTRO X7 |
| EAN |
Information
fEATURES
- 9.1.6 decoding for Dolby Atmos and DTS:X
- IMAX Enhanced, Auro-3D
- 4K UHD supporting HDMI 2.0b and HDCP 2.2
- ES9026PRO SABRE DACs (124 dB of dynamic range)
- Dirac Live® room correction
- 16 channel XLR outputs
- 16 channel unbalanced outputs
- Pairs perfectly with Savoy G4, Pantages G4, Avalon G4
- Dolby VisionTM playback support
- HDR support (HDR10/BT.2020)
- 4 user-assignable output channels
- 7 HDMI inputs / 3 HDMI outputs (eARC)
- IP, IR, RS232, and Wifi control
- AirPlay 2 and Google Chromecast streaming support
SPECIFICATIONS
INPUTS
- Audio Inputs: 7 HDMI, 2 XLR, 6 RCA Phono, 4 Coax SPDIF, 2 Toslink
- Nominal sensitivity: 1V, 2V, 4V (user selectable)
- Input Impedance: 47 kΩ
- Signal to Noise (A-wtd ref 100W) normal/stereo direct: 100 dB/110 dB
- Frequency Response: 20 Hz – 20 kHz ± 0.2 dB
- Video Inputs: 7 HDMI (HDMI 2.0b / HDCP 2.2)

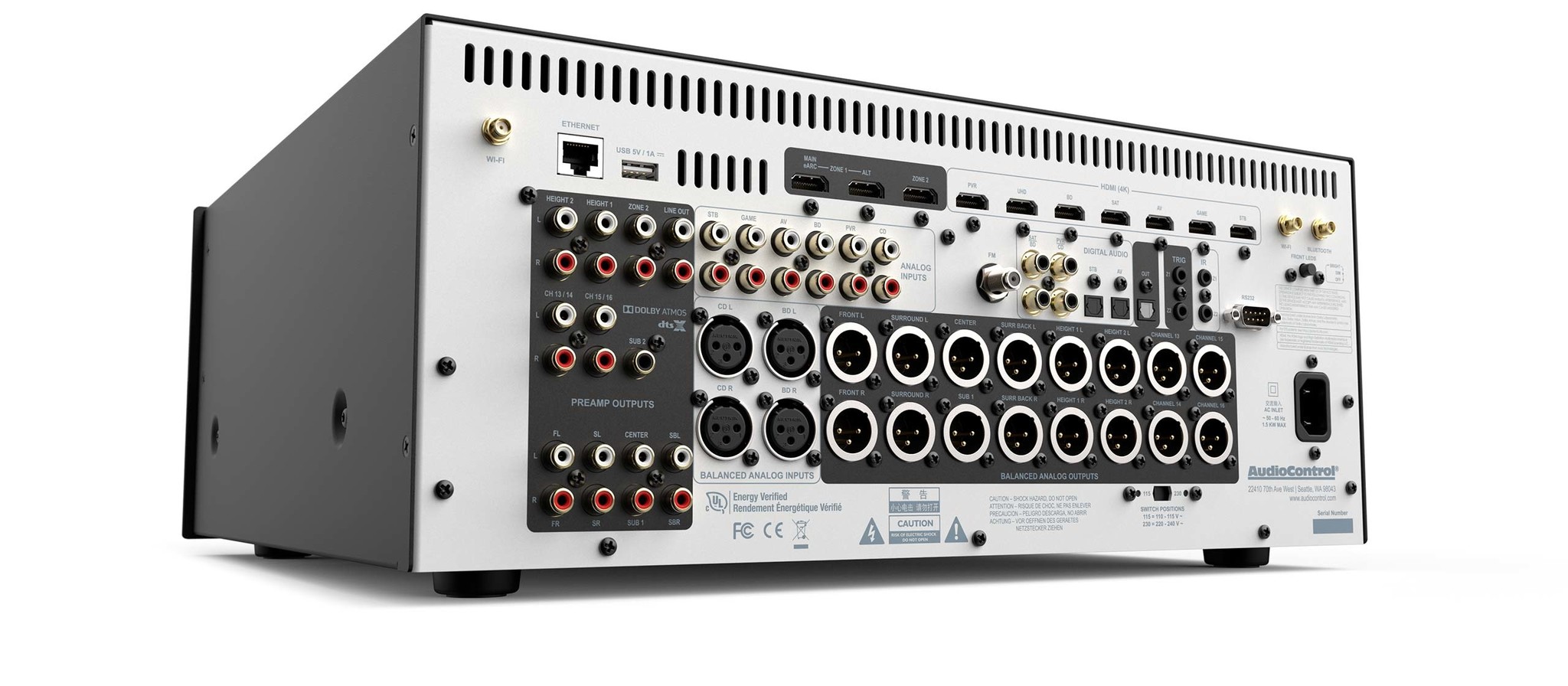

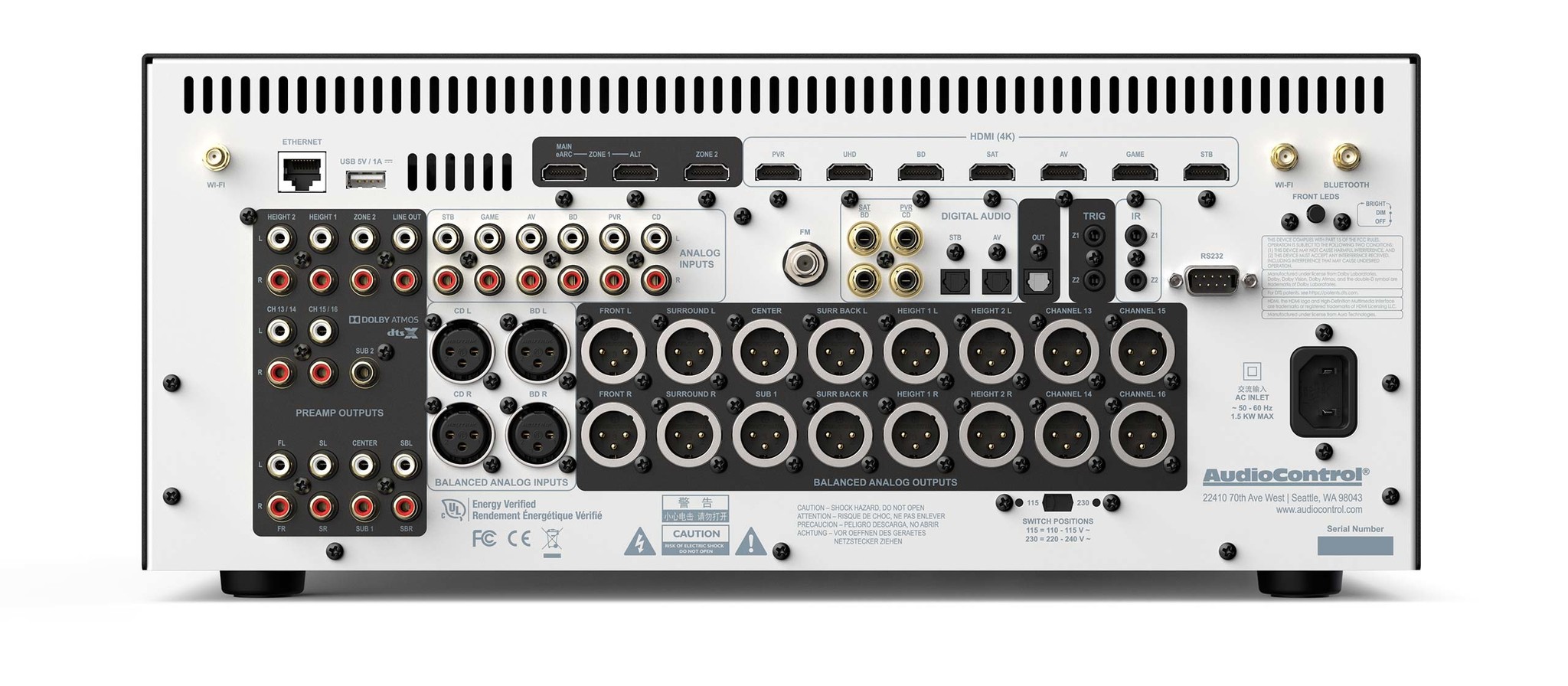

OUTPUTS
- Preamp Audio Outputs: 16 channels (balanced XLR), 16 channels (unbalanced RCA), 2 channels zone 2 (unbalanced RCA), 1 Toslink
- Nominal output level: 1 Vrms (max. 5 Vrms)
- Output impedance: 560 Ω
- THD+N (20 Hz – 20 kHz): -100dB
- Main Video Outputs: Dual (2) HDMI (eARC support)
- Second Zone Output: 1 HDMI
- Headphone Output: 1 1/4″
CONTROL
- IP Ethernet
- Wifi
- RS232 Serial Control
- 12 Volt Trigger Outputs: 2
- IR Receiver Inputs: 2
general
- Power consumptoin (standby): <0.5W
- Power consumption (idle, typical): 40W (170 BTU/hour)
- Power consumption (maximum): 50W (170 BTU/hour
WEIGHTS & DIMENSIONS
- Dimensions (including terminals and feet): 17”W x 16.9”D x 7.3”H (4U)
- Weight: 27.1 lbs. (12.3 kg)
- IN THE BOX: Maestro X7, HTR-3 remote with 2 x AAA batteries, DAB/FM antenna, 3 x WiFi/Bluetooth antennas, calibration microphone, USB cable, power cord, user manual, warranty
