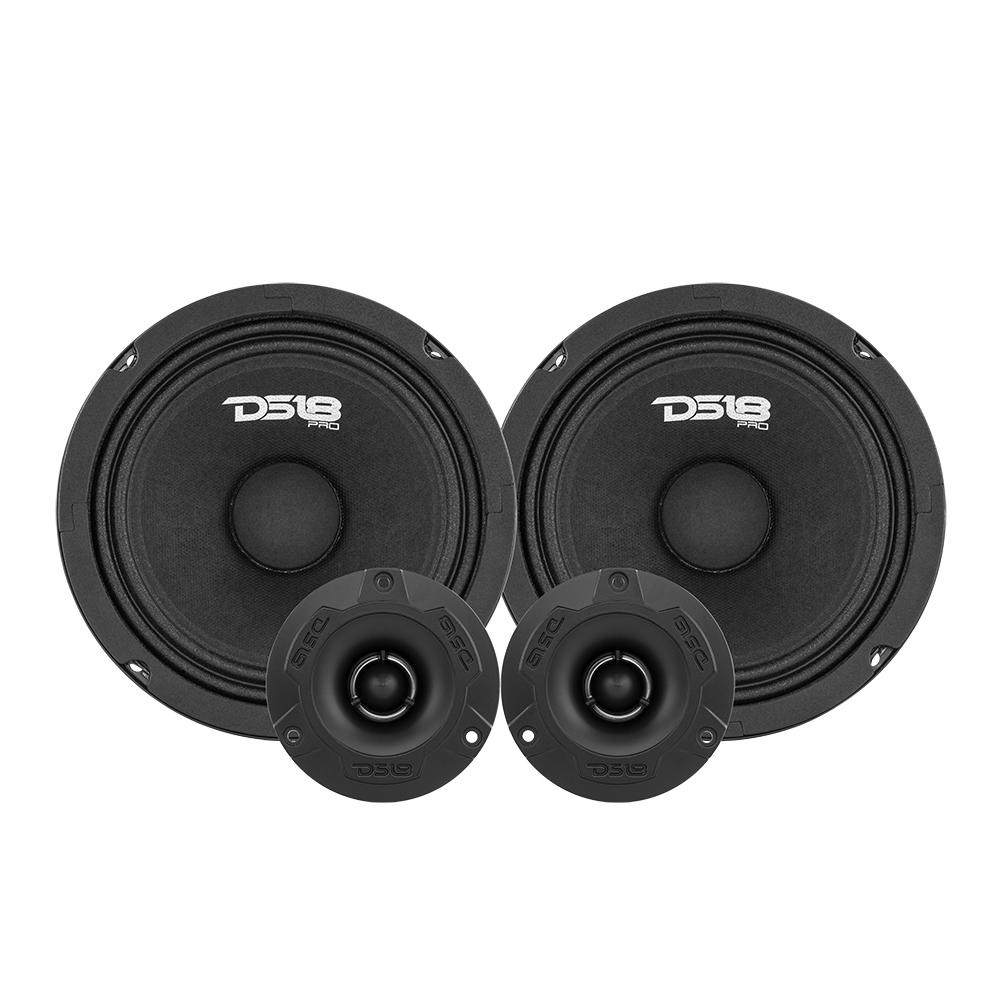

PRO-GM6.4PK DS18 700W 6.5" & 1" PRO COMBO

Brand: DS18
|
In stock
Ordered before counting..., delivered tomorrow
Login for prices
Article code PRO-GM6.4PK
EAN 810005182584
Information

High Wattage Mid and High Range Package Extremely Loud PRO Audio 6.5" Set

What's in the package?

  • Pair PRO-GM6.4
  • Pair PRO-TWX1/BK
  • Model: PRO-GM6.4
    Type: Midrange Loudspeaker
    Overall Diameter 6.61 / 68mm
    Baffle Cutout Diameter 5.70 / 145mm
    Mounting Depth 2.51 / 64mm
    Nominal Impedance 4 OHM
    Rms Power Handing 140 Watts
    Maximum Power Handing 480 Watts
    Sensitivity (1w/1m) 92dB
    Frequency Response 98-10KHz
    Voice Coil Diameter 1.5 / 38.6mm
    Winding Material

    KCCAW

    Magnet Weight Ferrite 23 Oz
    Basket Material Steel.
    Model: PRO-TWX1/BK
    Nominal Diameter 1
    Nominal Impedance 4 ohms
    AES Power Handling

    60 Watts

    Program Power Handling

    120 Watts

    Peak Power Handling

    240 Watts

    Sensitivity (1W/1W)

    103 dB

    Frequency Response 3.5K-20Khz
    Recommended HI Pass Crossover 2 KHz
    Voice Coil Diameter 1"
    Voice Coil Former Material Kapton
    Winding Material.

    KCCAW

    Diaphragm Material Aluminum
    Magnet Material Ferrite
    Body Material Aluminum
    MEASUREMENTS
    Overall Diameter 3.78 / 96mm
    Overall Depth 1.78"/ 45mm

    Front Mount Baffle cutout

    2.76"/ 70mm
    Mounting Depth 1.57"/ 40mm
