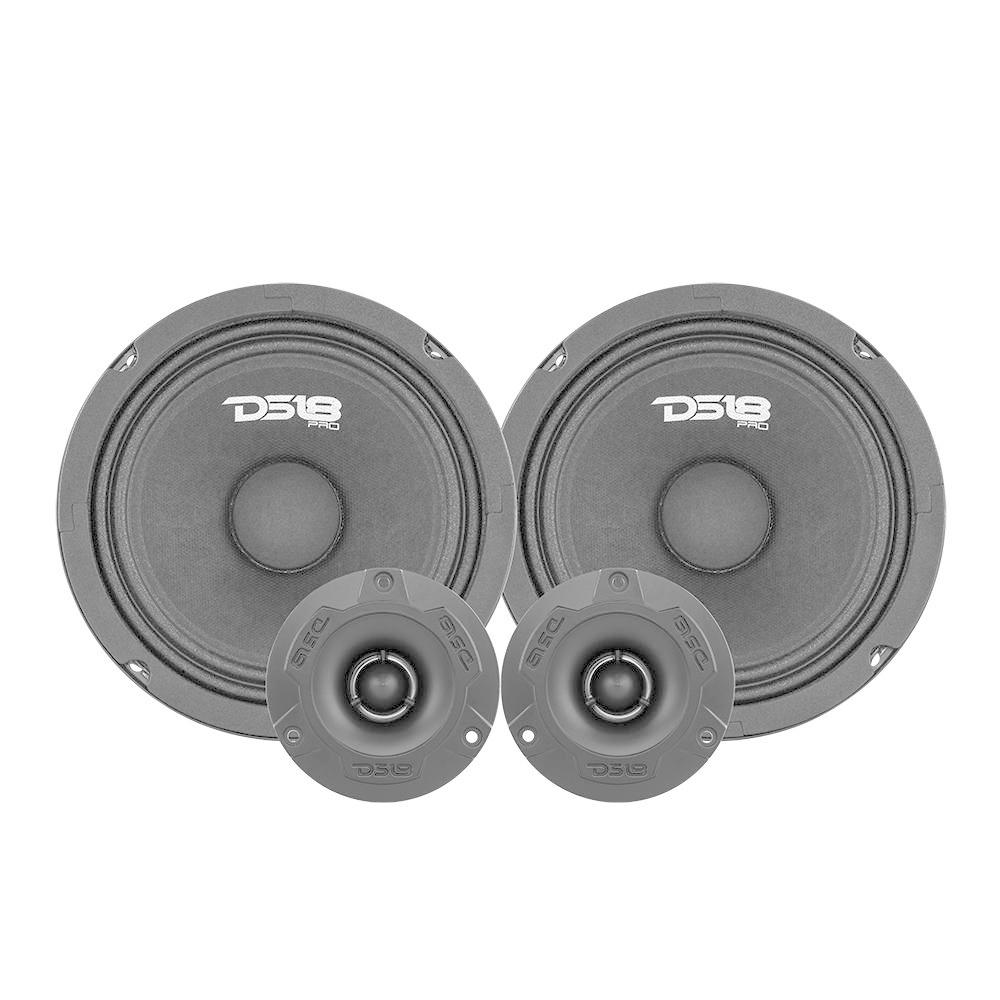

PRO-GM8.4PK DS18 800W 8" & 1" PRO COMBO

Brand: DS18
|
Call for availability
Login for prices
Article code PRO-GM8.4PK
EAN 810005182591
Information

High Wattage Mid and High Range Package Extremely Loud PRO Audio 8" Set

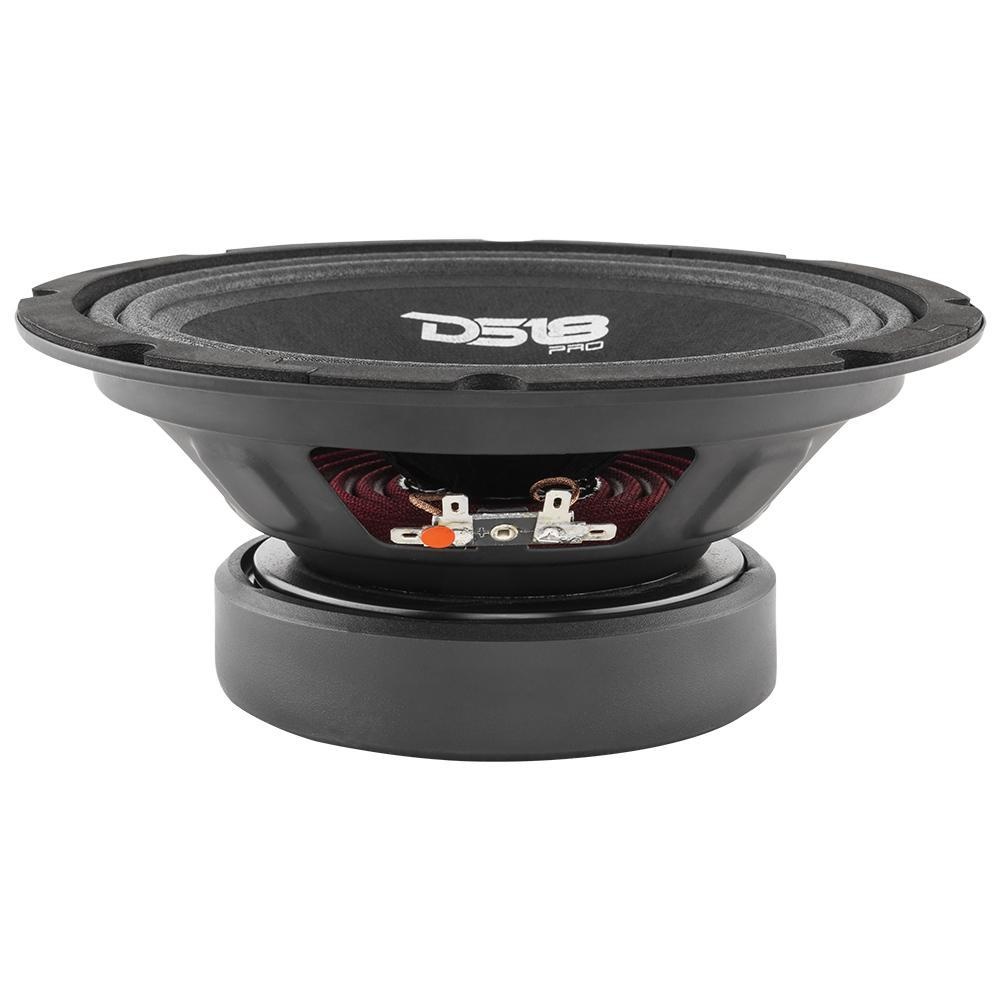

Model: PRO-GM8
Type: Midrange Loudspeaker
Size: 8"
RMS Power: 190W
MAX Power: 580W
Frequency Response: 90-10KHz
Impedance: 8 ohm
Sensitivity: 93dB
Materials
Surround: Cloth Surround
Frame: Black Stamp Steel Basket
Cone: Black Paper Woofer Cone
Magnet: Ferrite
Voice Coil Wire: Kapton
Diameters
Voice coil size: 1.5"
Magnet Size: 30 oz
Mounting Depth: 3.38" (86mm)
Cut-Out Dimension: 7.16" (182mm)
Model: PRO-TWX1/BK
Type: Super Bullet Tweeter
RMS Power: 120 Watts
MAX Power: 240 Watts
Diaphragm Material: Aluminum
Sensitivity: 103dB
Impedance: 4 Ohms
Frequency Response: 3.5KHz - 20KHz
Package Quantity: 2
MEASUREMENTS
Overall Diameter 3.78 / 96mm
Overall Depth 1.78"/ 45mm
Front Mount Baffle cutout 2.76"/ 70mm
Mounting Depth 1.57"/ 40mm
