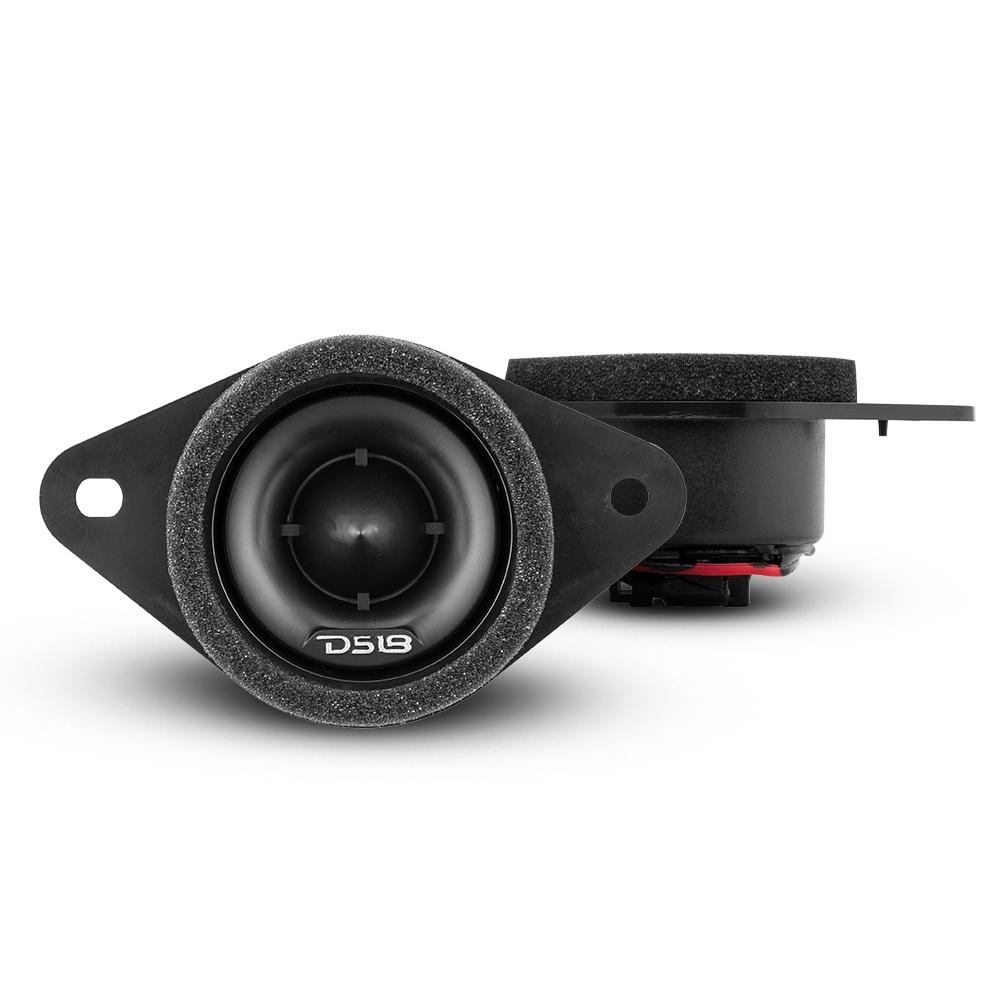

PRO-ST DS18 200W 1" OEM PRO TWEETER

Brand: DS18
|
In stock
Ordered before counting..., delivered tomorrow
Login for prices
Article code PRO-ST
EAN 810005188906
Information

PRO 1" OEM Replacement Perfect Fit In Most Toyota and Subaru Models 100 Watts 1" Aluminum 4-Ohm VC (Pair)

  • SPECIFICATIONS
    Nominal Diameter 1”
    Nominal Impedance 4 ohm
    AES Power Handling 50 W
    Program Power Handling 100 W
    Peak Power Handling 200 W
    Sensitivity (1w/1m) 98 dB
    Frequency Response 1KHz- 20KHz
    Recommended Hi Pass Crossover 4 KHz
    Pair or Single Pair
    MOTOR
    Voice Coil Diameter 1” / 25.4 mm
    VC Former Material Kapton
    Winding Material CCAW
    Diaphragm Material PEN
    Magnet Material Neodymium
    Magnet Weight 0.57 oz
    Body Material PC

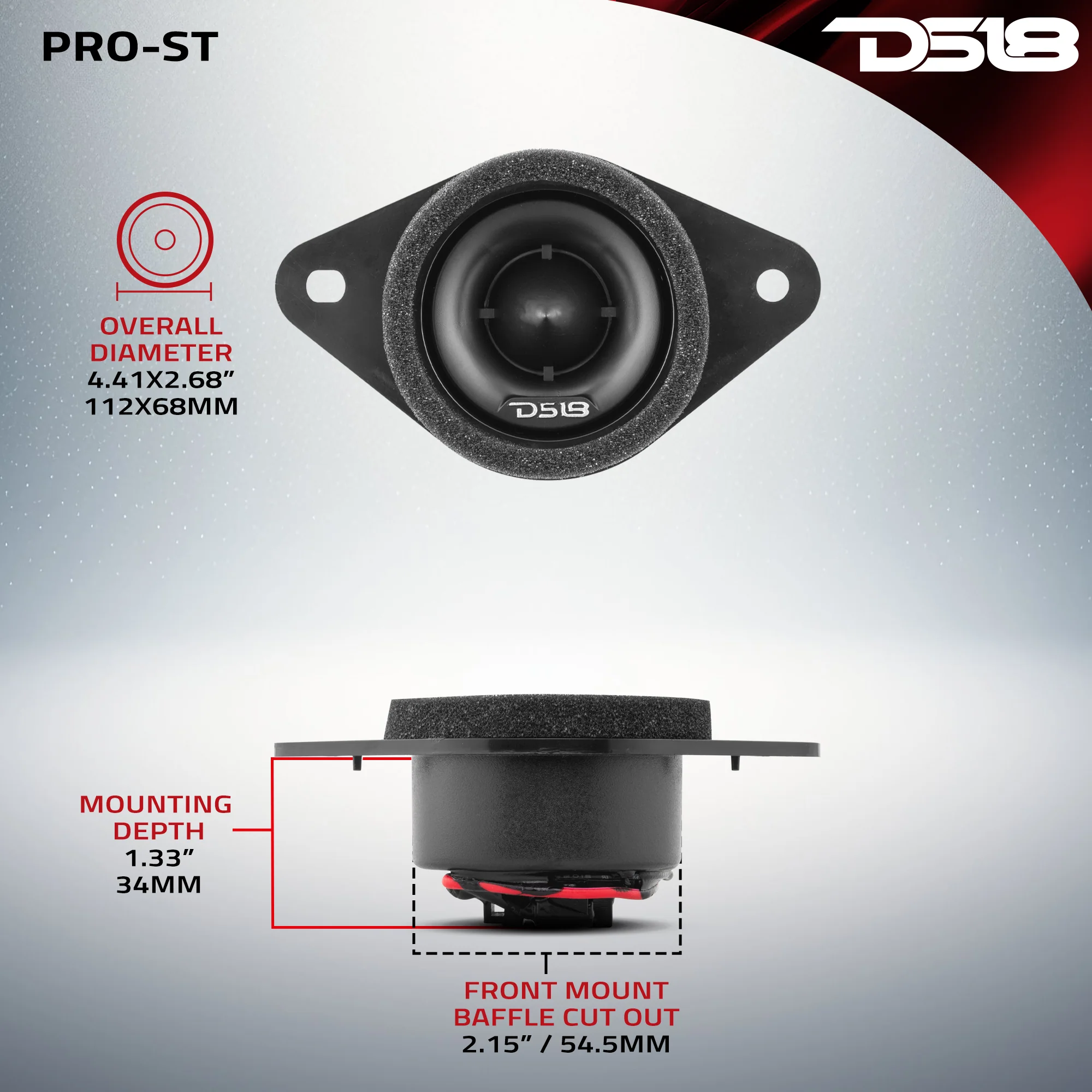

    MEASUREMENTS
    Overall Diameter 4.41x2.68” / 112X68 mm
    Overall Depth 1.77” / 45 mm
    Front Mount Baffle Cutout 2.15” / 54.5 mm
    Mounting Depth 1.33” / 34mm

    Toyota:
    2011 – 2015 Venza (Dashboard)
    2004 – 2021 Sienna (Dashboard)
    2005 – 2015 Tacoma (Door)
    2015 – 2021 Tacoma (Dashboard)
    2002 – 2011 Camry (Dashboard)
    2008 – 2020 Sequoia (Dashboard)
    2007 – 2020 Tundra (Dashboard)
    2004 – 2008 Solara (Dashboard)
    2010 – 2015 Prius (Dashboard)
    2003 – 2009 4runner (Door)
    2010 – 2021 4runner (Dashboard)
    2008 – 2013 Highlander (Dashboard)
    Subaru:
    2012 – 2020 Impreza / WRX / STi
    2014 – 2020 Forester
    2013 – 2020 Crosstrek

    Notes:
    Scion BRZ or Toyota FRS / 86 can be replacing the 3.5” mid and 1” tweeter for this tweeter instead.

    SOLD AS PAIR
