PRO-X6.4BMPK DS18 740W 6.5" & 1" PRO COMBO

Brand: DS18
|
Call for availability
Login for prices
Article code PRO-X6.4BMPK
EAN 810005182850
Information

High Wattage Mid and High Range Package Extremely Loud PRO Audio 6.5" Component Set

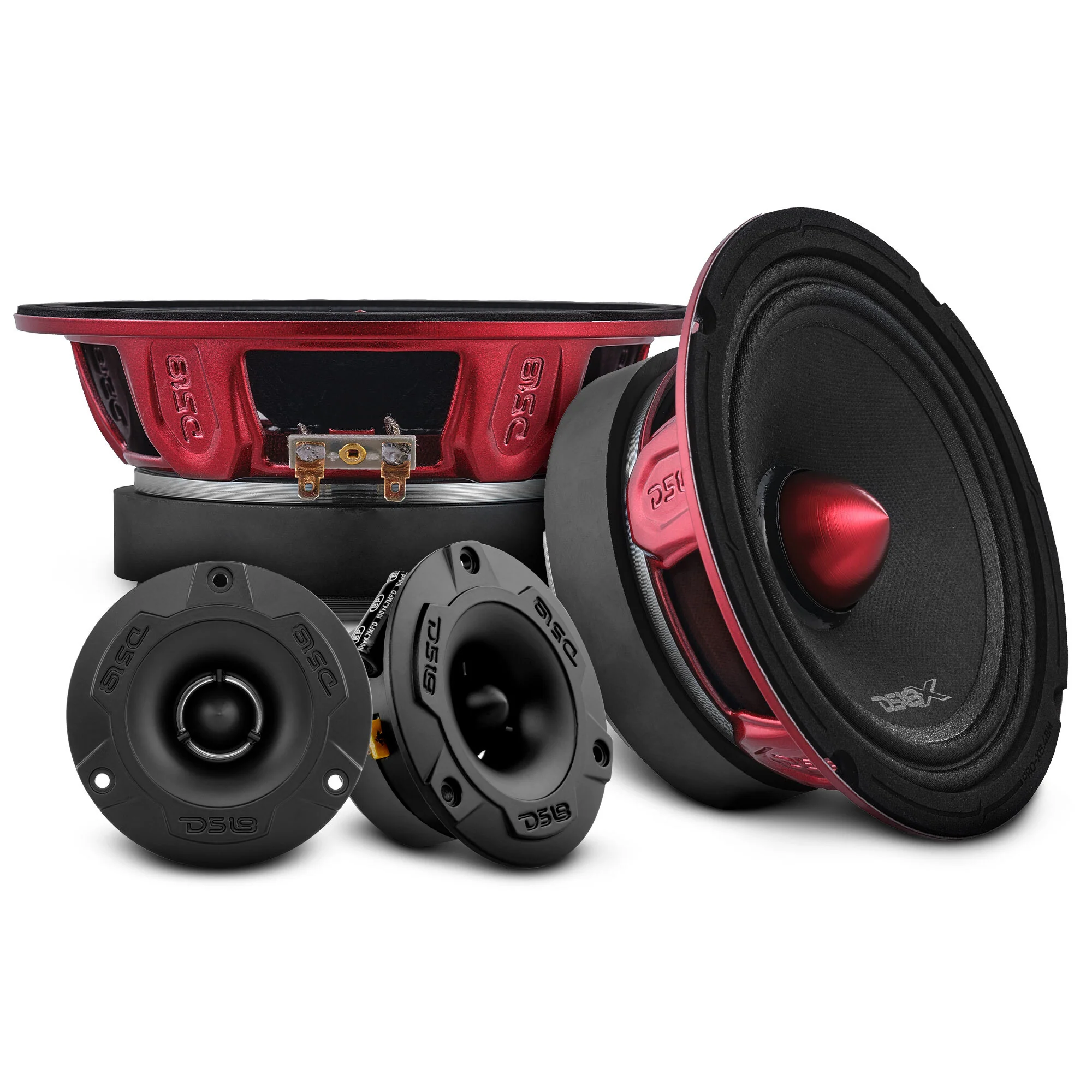

What's in the box?

  • Pair Midrange Loudspeaker 6.5" (PRO-X6.4BM)
  • Pair Super Bullet Tweeter 1" Built In Crossover (PRO-TWX1/BK)

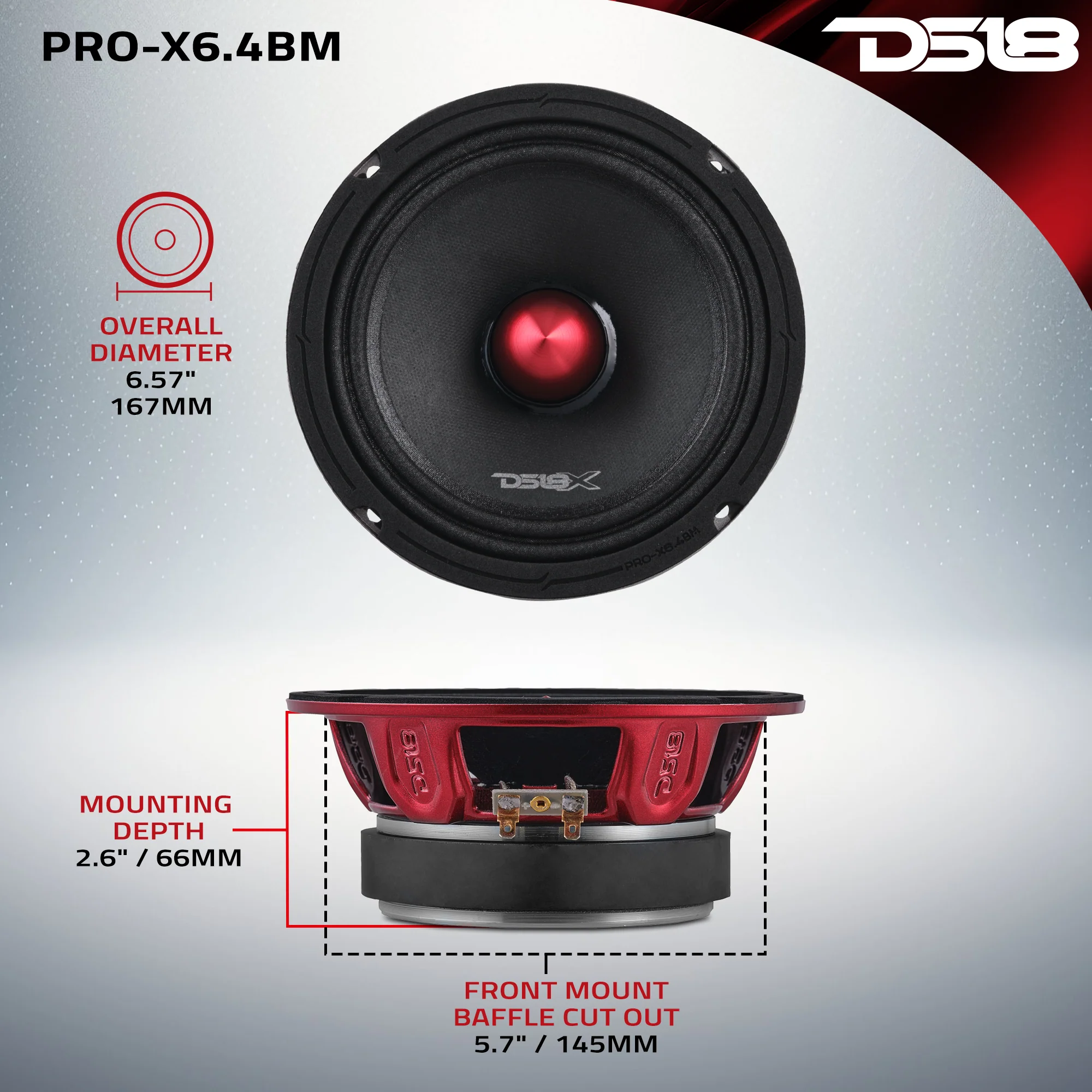

  • Model: PRO-X6.4BM
    Type: Midrange Loudspeaker
    Size: 6.5"
    RMS Power: 250W
    MAX Power: 500W
    Frequency Response: 106-17KHz
    Impedance: 4 ohm
    Sensitivity: 93dB
    Materials
    Surround: Cloth Edge
    Frame: Red Steel Basket
    Cone: Non-Pressed Paper Cone
    Magnet: Ferrite
    Voice Coil Wire: CCAR
    Diameters
    Voice Coil Size: 1.5"
    Magnet Size: 30 oz
    Mounting Depth: 2.72" (69mm)
    Cut-Out Dimension: 5.7" (145mm)

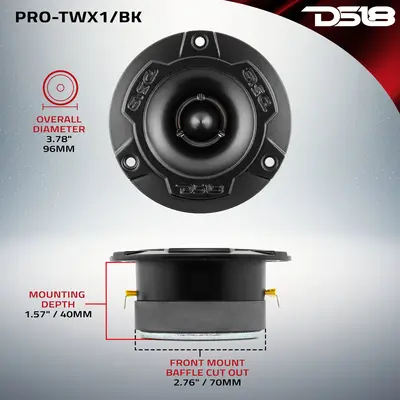

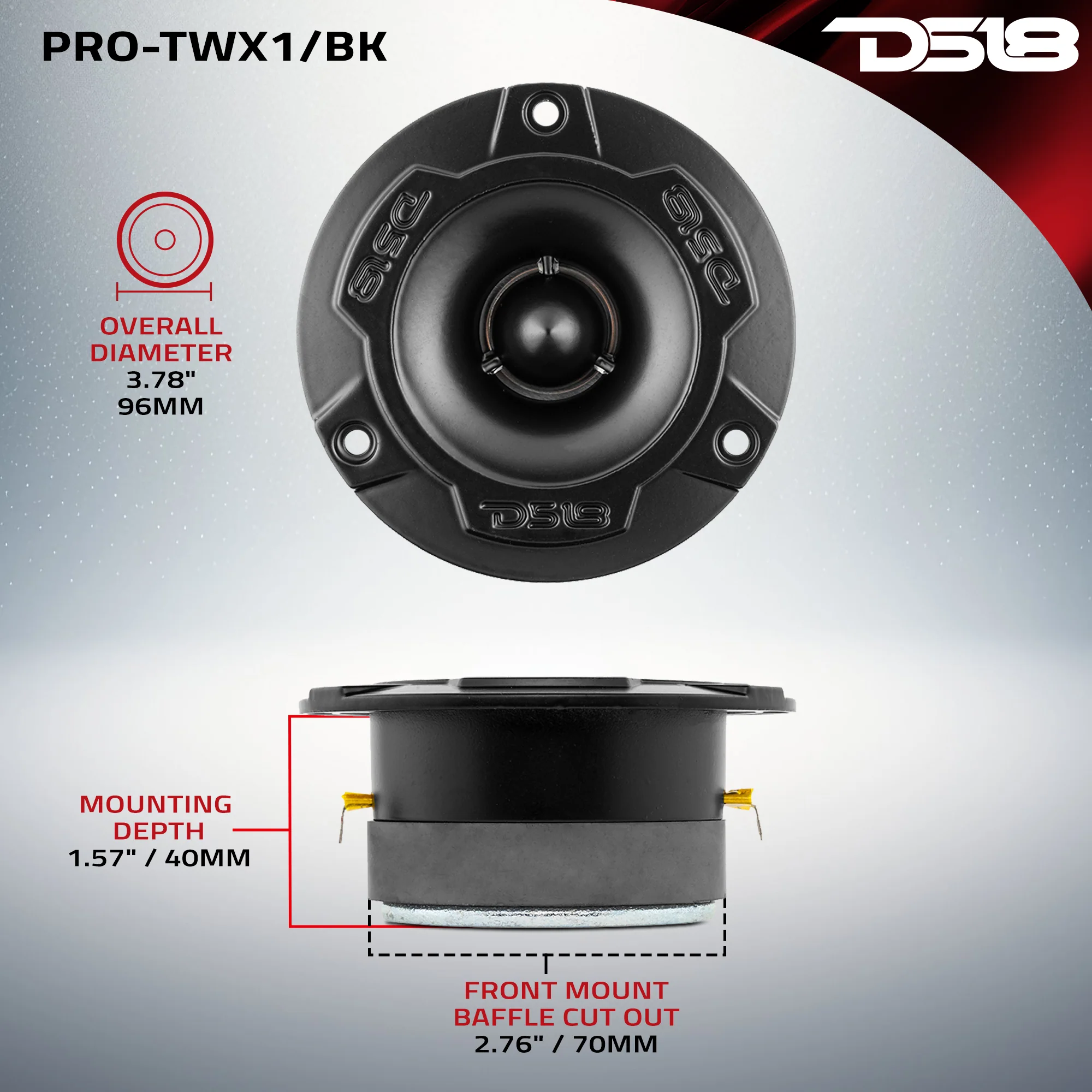

    Model: PRO-TWX1/BK
    Nominal Diameter 1
    Nominal Impedance 4 ohms
    AES Power Handling 60 Watts
    Program Power Handling 120 Watts
    Peak Power Handling 240 Watts
    Sensitivity (1W/1W) 103 dB
    Frequency Response 3.5K-20Khz
    Recommended HI Pass Crossover 2 KHz
    Voice Coil Diameter 1"
    Voice Coil Former Material Kapton
    Winding Material. KCCAW
    Diaphragm Material Aluminum
    Magnet Material Ferrite
    Body Material Aluminum
    MEASUREMENTS
    Overall Diameter 3.78 / 96mm
    Overall Depth 1.78"/ 45mm
    Front Mount Baffle cutout 2.76"/ 70mm
    Mounting Depth 1.57"/ 40mm
