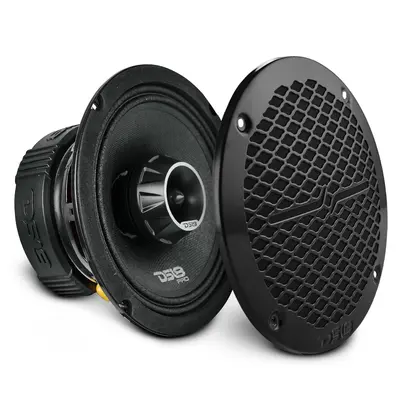

PRO-ZT6 DS18 450W 6.5" PRO COAXIAL SPK
Brand:
DS18
|
| Article code | PRO-ZT6 |
| EAN | 810005180757 |
Information
PRO-ZT 6.5" 2-Way Mid-Range Loudspeaker with Built-in Bullet Tweeter and Water Resistant Cone 450 Watts 4-Ohm (1 Speaker)
| Nominal Diameter: | 6.5" (1651.1mm) |
| Nominal Impedance: | 4 ohms |
| RMS Power Handing: | 225 Watts |
| MAX Power Handing: | 450 Watts |
| Sensitivity (1w/1m): | 96dB |
| Frequency Response: | 65Hz - 22KHz |
| Recommended Hi Pass Crossover | 120Hz |
| Midrange | |
| Voice Coil Diameter: | 1.5" (38.1mm) |
| Voice Coil Former Material: | Kapton |
| Winding Material: | CCAW |
| Basket Material: | Steel |
| Magnet Weight: | 27 oz. |
| Tweeter | |
| Voice Coil Diameter: | 1" |
| Voice Coil Material: | Kapton |
| Winding Material: | CCAW |
| Diaphragm Material: | Aluminum Alloy |
| Magnet Weight: | 0.44 oz. |
| Magnet Material: | Neodymium |
| Thiele & Small Parameters | |
| Equivalent Volume / Vas | 2.917 LTR |
| Excursion / Xmax | 16mm |
| Free Air Resonance / Fs | 150Hz |
| Mechanical Factor / Qms | 3.906 |
| Electrical Factor / Qes | 0.747 |
| Total Factor / Qts | 0.627 |
| DC Resistance / Re | 3.2 |
| Measurements | |

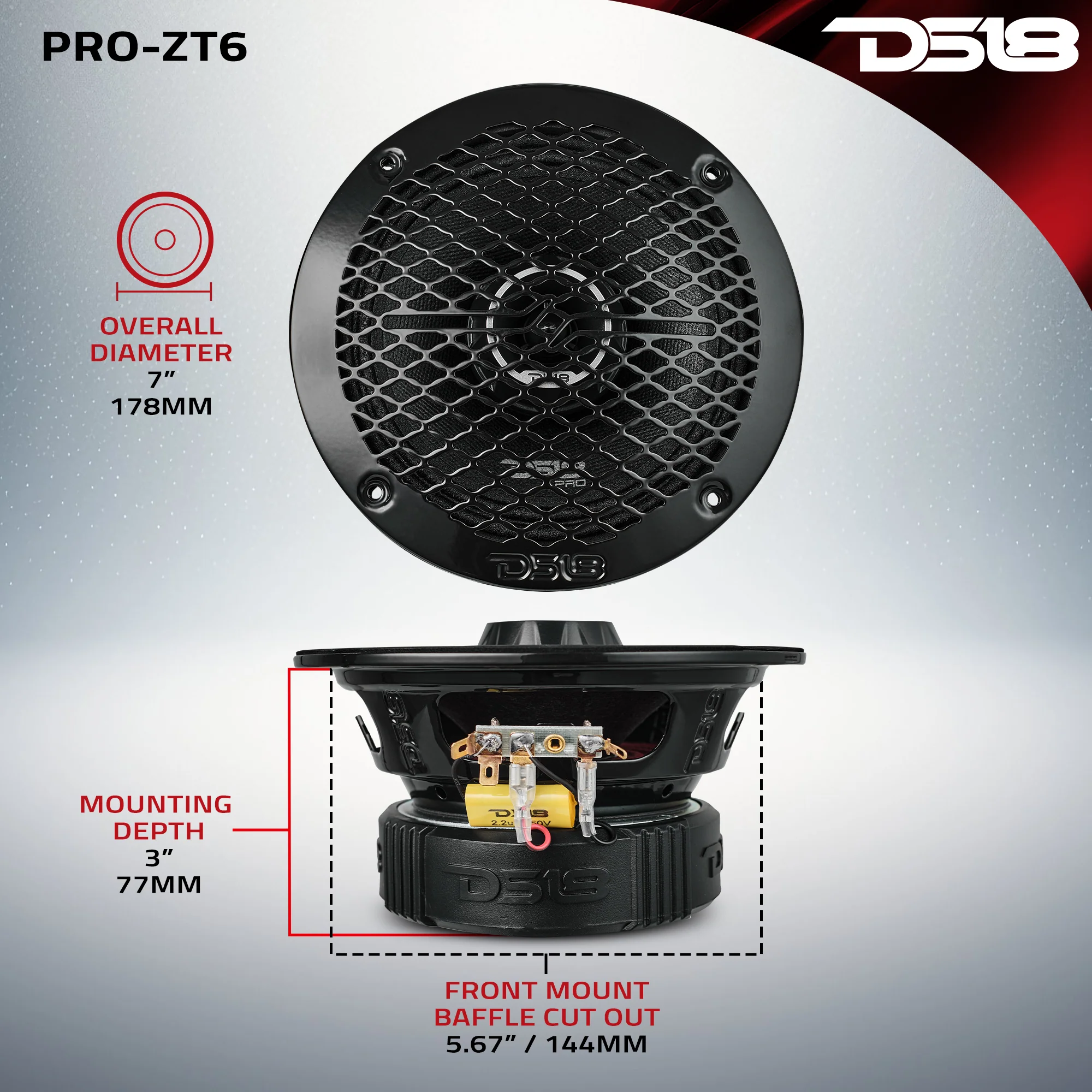

| Overall Diameter: | 178mm (7") |
| Front Mount Baffle Cutout: | 144mm (5.67") |
| Mounting Depth: | 77mm (3.03") |
| Overall Depth: | 97mm (3.81) |
