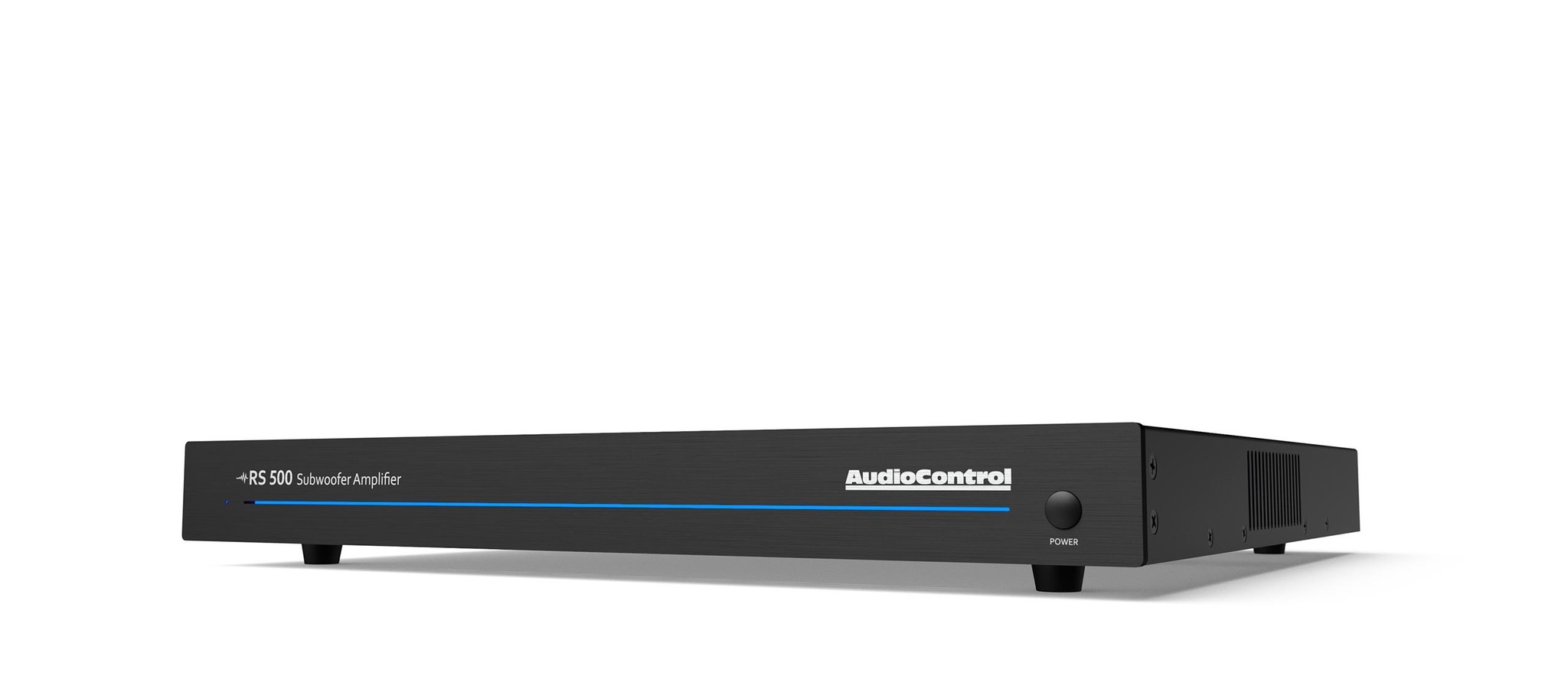

RS 500 DSP CONTROLLED SUBWOOFER AMPLIFIER
Brand:
AUDIO CONTROL
|
| Article code | RS 500 |
| EAN |
Information
fEATURES
- 500 Watts at 8/4/2 Ohms
- Digital Signal Processing (DSP) Performance
- Six-band Graphic EQ
- Eight-band Parametric EQ
- Crossover with Subsonic Filter
- Built-In Speaker Optimization Profiles
- Ethernet Port for Status Monitoring, Source Switching and 12 Volt Trigger Control
- Network Programmable Graphic & Parametric Equalization with User Memories
- Digital Signal Sense
- AudioControl LightDrive Anti-Clipping Speaker Protection
- Balanced Inputs/Thru
- Unbalanced Input/Thru
- LFE Input/Thru
- Speaker Level Inputs
- Home and Commercial Installations
SPECIFICATIONS
INPUTS
- Audio Inputs: 1 Balanced, 2 Unbalanced, 1 LFE, 2 Speaker Level
- Nominal sensitivity: 0.5V to 4V (user selectable)
- Signal to Noise (A-wtd ref full output): 98 dB
- Frequency Response: 15 Hz – 350 Hz
OUTPUTS
- Amplifier Channels: 1
- Continuous power output: 500W
- Minimum Speaker Load: 2Ω
- Loop/Thru Audio Outputs: 1 Balanced, 2 Unbalanced, 1 LFE
- Total Harmonic Distortion: 0.1%
CONTROL
- Remote Power Trigger: +12 VDC or Dry Contact Closure
- Network Connection/Protocol: 10BaseT Ethernet TCP/IP
- Communication Protocol: HTTP or Telnet
- 12 Volt Trigger Outputs: 1
- IR Receiver Inputs: 1
WEIGHTS & DIMENSIONS
- Dimensions (including terminals and feet): 17”W x 17.5”D x 1.75”H (1U)
- Weight: 14.9 lbs. (6.8 kg)
- IN THE BOX: RS 500, power cord, user manual, warranty
