RZR14RC-STG6 RF 2014-UP RAZR KIT
Brand:
ROCKFORD FOSGATE
|
| Article code | RZR14RC-STG6 |
| EAN | 780687360221 |
Information

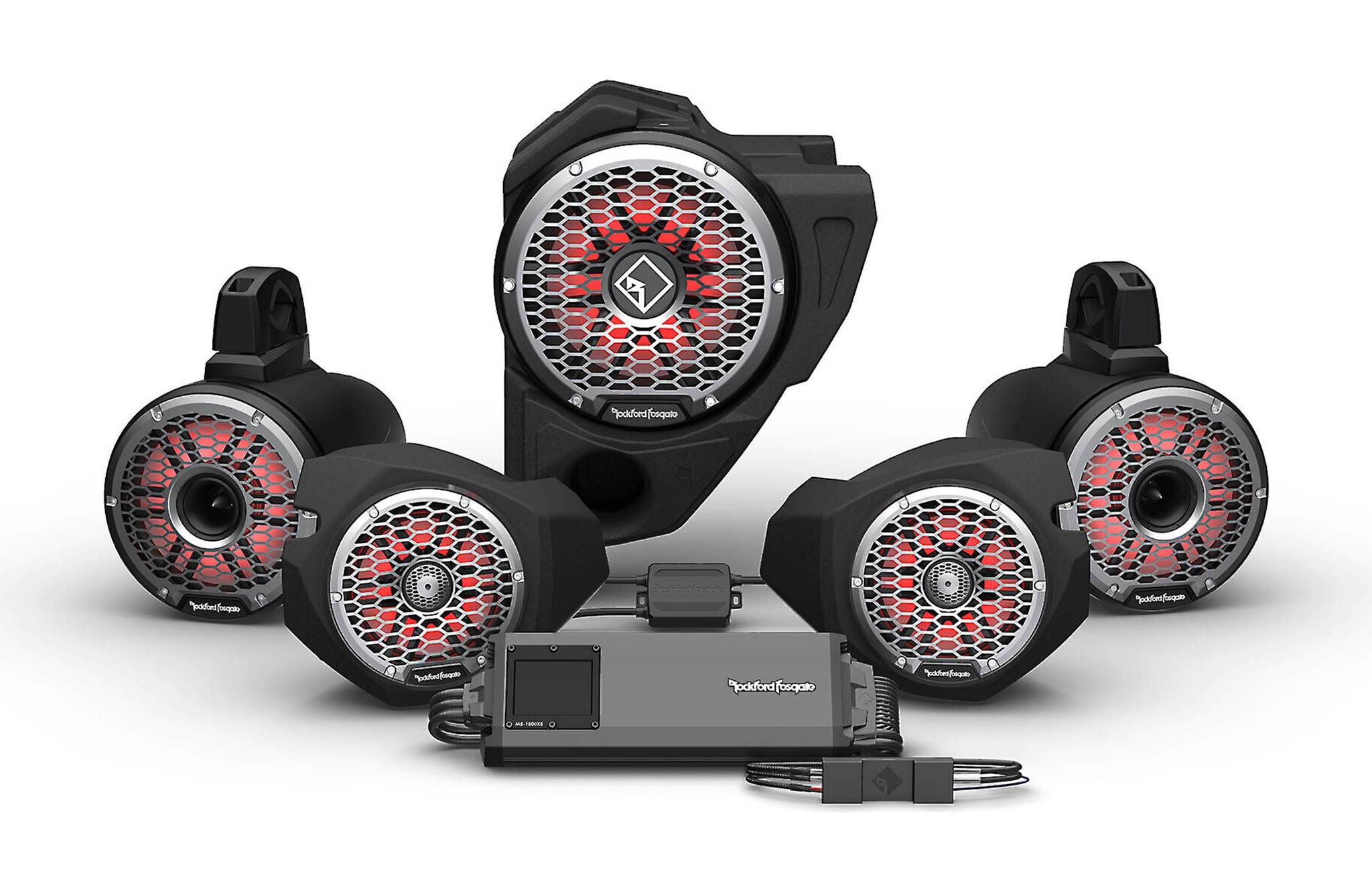

Stage 6 audio upgrade kit for select 2014-up Polaris RZRs with Ride Command: includes 4 speakers, 5-channel amplifier, and 10" sub
Product highlights:
- Element Ready UTV system includes 6-1/2" speakers, 8" speakers, 5-channel amp, and 10" subwoofer
- also includes front and rear speaker pods, sub enclosure, Ride Command interface, a Color Optix controller, wiring, amp kit and mounting plate
Rockford Fosgate M2-65B 6-1/2" 2-way marine speakers
- power handling up to 150 watts RMS (600 watts max)
- injection-molded mineral-filled parabolic polypropylene cone
- 1" bridge-mounted tweeter
- warranty: 2 years
Rockford Fosgate M2WL-8HB 8" tower speakers
- power handling: 300 watts RMS (1200 watts peak power)
- 360° rotational mounting capability for unlimited flexibility
- high-density sealed polyethylene enclosures with stainless steel grilles
- warranty: 2 years
Rockford Fosgate M2D4-10IB 10" marine subwoofer
- handles up to 400 watts RMS (1600 watts peak)
- sensitivity: 90.3 dB
- impedance: 2 ohms
- integrated Deutsch™/Amphenol™ connectors for easier wiring connections
- injection-molded frame with UV inhibitors
- warranty: 2 years
Rockford Fosgate M5-1500X5 5-channel amp
- 100 watts RMS x 4 + 600 watts x 1 at 2 ohms
- 100 watts RMS x 4 + 400 watts x 1 at 4 ohms
- conformal-coated circuit board — suitable for power sports and marine applications
- top-mounted control panel with waterproof smoked lens
- warranty: 2 years
What's in the box:
- This package contains 10 individually boxed items:
- M5-1500X5 Amplifier:
- 5-Channel powersports amplifier
- 11" Power/ground/turn-on & subwoofer output harness (installed on amp)
- 11" Input harness (installed on amp)
- Three 14" RCA-to-Molex input adapters
- Power/ground/turn-on adapter plug
- Subwoofer output adapter plug
- Two 7.5" speaker output harnesses
- 3mm Allen key
- Owner's manual
- Performance certificate
- Contact information
- M2WL-8HB Wake Tower Speakers:
- Two M2 8" waketower speakers (black) w/stainless steel grilles
- 2 Plastic sport grilles (black)
- 2 Upper mounting brackets
- 2 Lower mounting brackets
- Four 2.5" - 3.0" rubber shims w/mounting hardware (four 2-5/8" bolts / 4 flat washers / 4 lock washers)
- Four 2.5" - 3.0" rubber shims w/mounting hardware (four 1-3/4" bolts / 4 flat washers / 4 lock washers)
- Two 12" 6-pin wire harnesses w/Deutsch connectors
- 2 Connection cover-plates
- 4 Plastic grommets
- 1/8" Hex bit
- T-45 Torx wrench
- Instruction manual
- Contact information card
- M2-65B Speakers:
- Two 6.5" 2-way marine speakers
- 2 Centrex plastic grilles (Black)
- 2 Stainless steel grilles
- 2 Grille rings (Black)
- Two 11" LED power harnesses with 4-pin Deutsch connectors on one end
- Twelve 1-3/4" Stainless steel Allen head screws
- 3mm Allen head bit
- 3.5mm Drill bit
- Instruction manual (English/ French/ Spanish/ German/ Italian)
- M2D4-10IB Subwoofer:
- One 10" marine subwoofer
- 1 Centrex plastic grille (black)
- 1 Stainless steel grille
- 1 Grille ring (black)
- One 11" LED power harness with 4-pin Deutsch connector on one end
- Six 2-3/8" Stainless steel Allen head screws
- 4mm Allen head bit
- 4.5mm Drill bit
- Instruction manual (English/ French/ Spanish/ German/ Italian)
- PMX-RGB Color Optix Light Controller:
- LED Controller w/ attached 17" LED cables and 17" power/ground harness (inline 2A ATC fuse)
- 6" Power/ground harness adapter
- Two 3/4" machine-screws
- 2 Nuts
- 2 Lock-washers
- Installation manual
- RZR14-FWE Subwoofer Enclosure:
- Sub enclosure w/ attached 28" internal speaker wire
- 30" Wiring harness
- Two 1" screws
- 2 Flat-washers
- Two 1-1/2" adhesive foam pads
- One 14" section of bare-ended red wire
- Five 8" zip-ties
- One 14" zip-tie
- 1 Port plug
- Rockford Fosgate contact information
- RFPOL-RC5:
- Polaris Ride Command interface (attached 12" input and 5" output harnesses)
- Instructions
- RZR14-FSE Speaker Pods:
- 2 Empty speaker pods w/ attached 38" wire harness
- 2 Threaded studs
- 4 Mounting screws
- 2 Mounting bolts
- 6 Washers
- Hex-head screwdriver
- Five 8" zip-ties
- Rockford Fosgate contact information
- RZR14-K4 Amplifier Wiring Kit:
- 9.5' Power/ground/speaker harness (4 AWG w/ inline fuse-holder and 100A Maxi fuse installed)
- 30" Front/Rear RCA to Molex harness
- 2 Amplifier mounting plates
- Two 25mm Torx-socket screws (T30)
- One 12mm Torx-socket screw (T30)
- Four 10mm Torx-socket screws (T10)
- Twenty 8" Wire-ties
- Four 6" zip-ties w/ push-fastener ends
- Rockford Fosgate contact information
- MX-RSW16 Speaker Harnesses:
- Two 17.5' Rear speaker harnesses
- Six 6" wire-ties w/ push-fastener ends
- Sixteen 7.5" wire-ties
- Contact information card
-
Compatibility
Polaris Compatibility: The Rockford Fosgate RZR14RC-STG6 audio system can be used with the following Polaris RZR vehicles:
Make Model Year Polaris RZR 900 2014-2021 RZR 900 XC¹ 2015-2021 RZR 2 900 EPS¹ 2014-2018 RZR 4 900 EPS¹ 2014-2021 RZR RS1 Not compatible RZR S 900 2014-2021 RZR S 1000¹ 2017-2021 RZR S4 1000 2019-2021 RZR XP 1000¹ 2014-2021 RZR XP Turbo¹ 2016-2021 RZR XP Turbo S² 2019-2021 RZR XP Turbo Dynamix Edition 2018-2021 RZR XP 4 1000¹ 2014-2021 RZR XP 4 Turbo¹ 2016-2021 RZR XP 4 Turbo S² 2019-2021 RZR XP 4 Turbo Dynamix Edition 2018-2021 RZR XP 1000 Trails & Rocks 2019-2021 RZR XP 1000 High Lifter 2014-2021 RZR XP 4 1000 High Lifter 2014-2021 RZR PRO (all models)³ Not compatible ¹ 2014-2018 Models only compatible with lower pocket assembly supplied with dash kit.
² The 2-seat Turbo S shipped in early 2018 and the 4-seat Turbo S shipped in October 2018, however both are considered 2019 models and are compatible.
³ The RZR PRO (2020-up) models feature a different chassis and body panels and are not compatible.
All Models: Included subwoofer not compatible with Polaris heater option (located where sub enclosure mounts).
