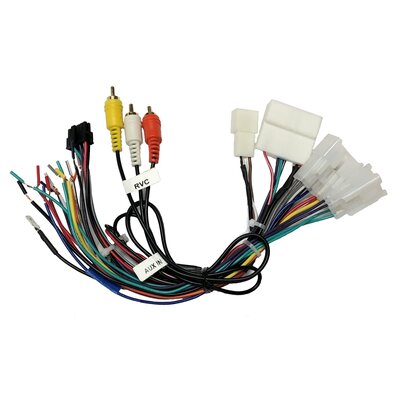

Crux SWRSU-38C Wiring Interface owner's manual

• Radio replacement interface
• Wiring harness
• SWC harness
• Antenna adpater
• Installation Instructions

• Vehicle Compatibility: The CRUX SWRSU-38C radio replacement interface works with the following 2015-up Subaru vehicles equipped with non-amplified factory audio systems (not compatible in vehicles with factory amplifiers).

  Make	Model		Year
  Subaru	Ascent		2019-2022
  	BRZ		2017-2020
  	Crosstrek		2016-2022
  	Forester		2015-2021
  	Impreza		2016-2022
  	Outback		2015-2020
  	WRX		2016-2020
  	XV Crosstrek		2015

  Steering Wheel Controls: The CRUX SWRSU-38C will retain your vehicle's factory steering wheel controls. The SWRSU-38C features a steering wheel control output for Alpine, Blaupunkt, Boss, Clarion, Dual, Jensen, JVC, Kenwood, Pioneer, Sony aftermarket head units. The steering wheel control output consists of a right-angle 3.5mm connector and a light blue/yellow wire (use the connection that your aftermarket head unit is outfitted with). *The steering wheel control phone pickup and hang up buttons will be reversed in the following vehicles -

  • 2019-2022 Ascent
  • 2018-2022 Crostrek
  • 2019-2021 Forester
  • 2017-2022 Impreza
  • 2018-2019 Legacy
  • 2018-2019 Outback

  Note: The SWRSU-38C interface module's dip-switches will need to be configured to work with your compatible aftermarket radio (see owner's manual for appropriate setting).
