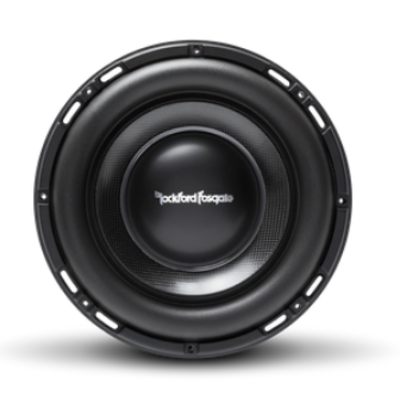

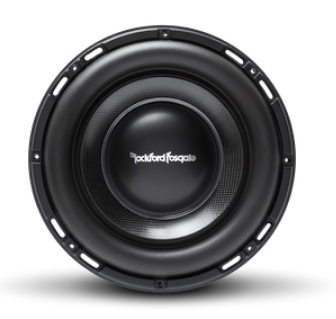

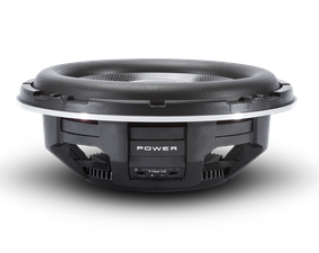

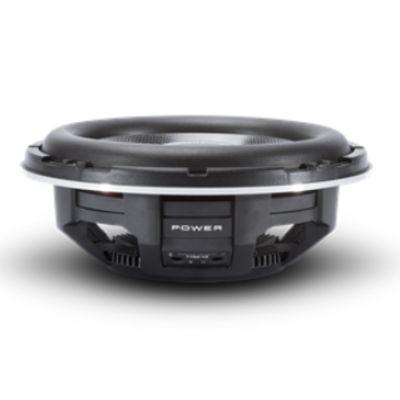

T1S2-10 RF POWER T1 10" SLIM SUB SVC 2OHM

OVERVIEW:

• Carbon fiber/PMI/glass fiber cone with aluminum dustcap
• Injection molded foam surround with VAST™
• Dual Nomex progressive spiders with integrated lead wires
• Aluminum diecast frame with integrated heat sink fins
• Custom insulated push spring 10 AWG terminals
• Dual wound 2.5" voice coil with interior/exterior windings
• Encapsulating voice coil to former coupling technology (patent pending)
• Detachable die cast aluminum trim ring
• Vented pole piece
• High temp high energy neodymium motor structure
• Proprietary split yoke pass thru motor technology (patent pending)
• Integrated copper cap heat sinking shorting ring (IDHS)
• Optional grille insert available
• Optimized for sealed enclosures
