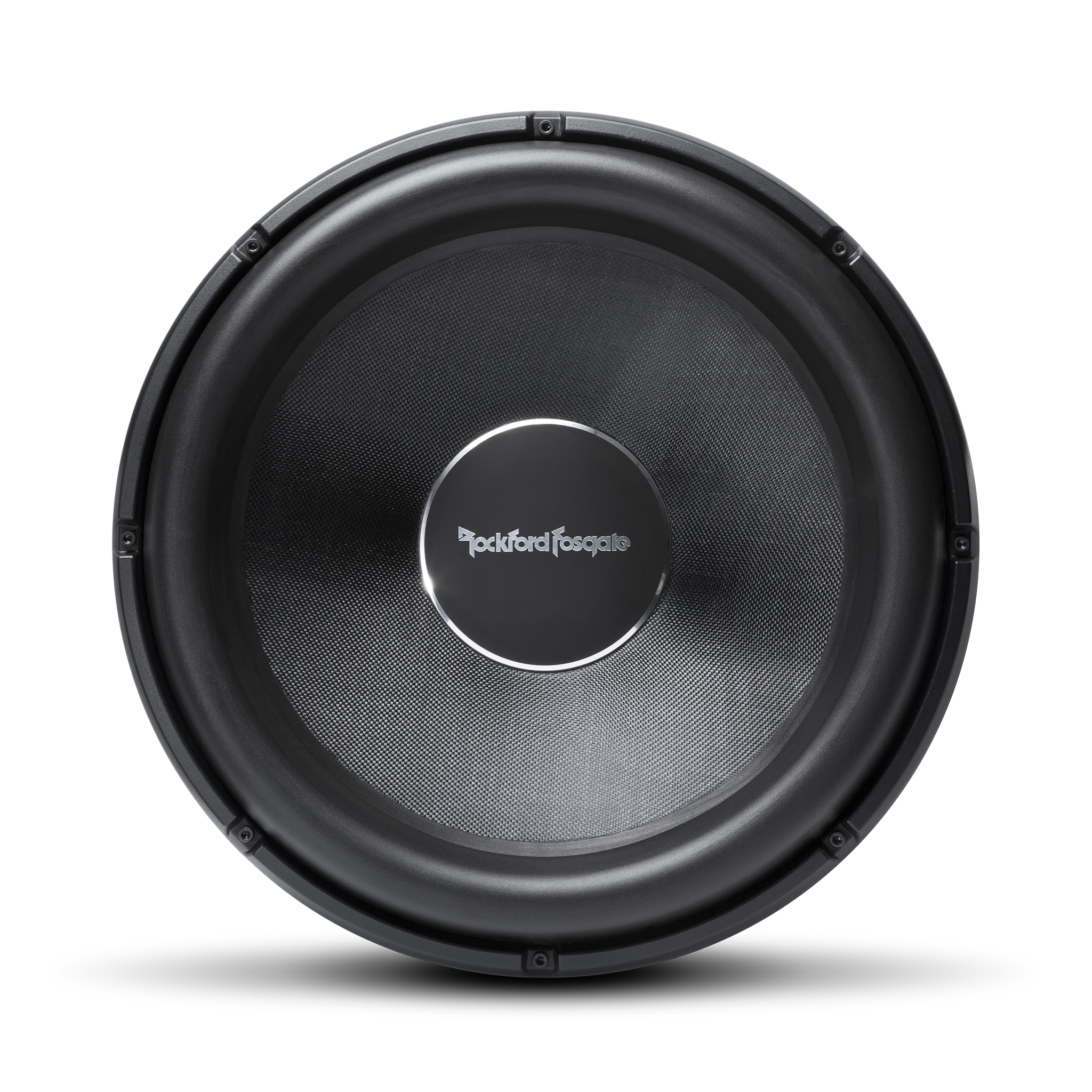

Power 19" T3 Single 1-Ohm Superwoofer

The Power T3S1-19 can rightfully be classified as a superwoofer due to its whopping 19-inches of effective radiating cone area! That's right... we don't need no stinkin' 18" subs ... this is for genuine Car Audio Fanatics that want to go BIG like Mannie Fresh. We're talkin' Real Big bass and Real Big power handling in a Real Big ride.

• Three layer glass fiber/Aramid honeycomb/Glass fiber cone
• Aluminum dustcap
• Injection molded foam surround with VAST™
• Proprietary surround mechanical clamping ring
• Dual Nomex progressive spiders with integrated lead wires
• Aluminum diecast frame with integrated heat sink fins and venting
• Custom push spring insulated 4 AWG terminals
• Single layer edge wound aluminum 5" voice coil
• Since voice coil design with dual (push/pull) windings
• Integrated die cast aluminum trim ring
• Dual gap multi-pole Neodymium push/pull motor structure
• 1 Year Warranty
• Size

  19"

  Subwoofer Type

  Superwoofer

  CEA-2031 Compliant



  Nominal Impedance

  1-Ohm

  Power Handling (Watts RMS)

  3000 Watts RMS
  6000 Watts Max

  Speaker Connector

  4 AWG Compression Terminal

  Voice Coil Type

  Single Voice Coil

  Voice Coil Diameter

  5.0" (127 mm)

  Magnet Weight (oz)

  115 oz. (3.26 Kg)

  Fs (Hz)

  27

  Re (Ohms)

  0.8

  Le (mH)

  0.45

  Qms

  1.93

  Qes

  0.38

  Qts

  0.32

  Vas (Liters)

  104.9

  Sd (cm²)

  1472

  SPL (dB @ 1w/1m)

  91

  Xmax (mm)

  34

  Cutout Diameter

  17.54 in. (445 mm)

  Mounting Depth

  15.62 in. (396 mm)

  Woofer Displacement

  0.339 cu. ft. (9.6 Liters)

  Sealed Box Volume (Vb)

  —

  Vented Box Volume (Vb)

  8.0 cu. ft. (226.5 Liters)

  Shipping Weight

  106.30 Lbs. (48.2 Kg.)
