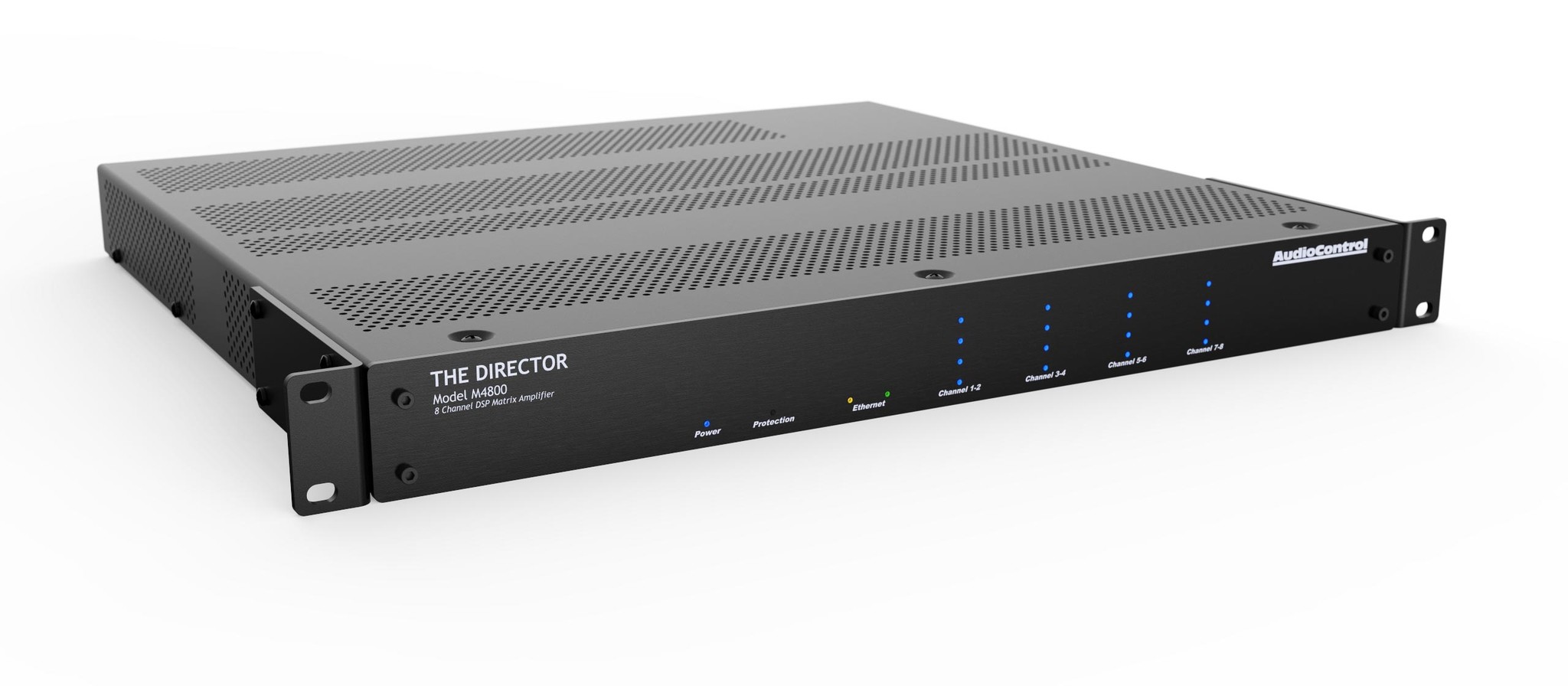

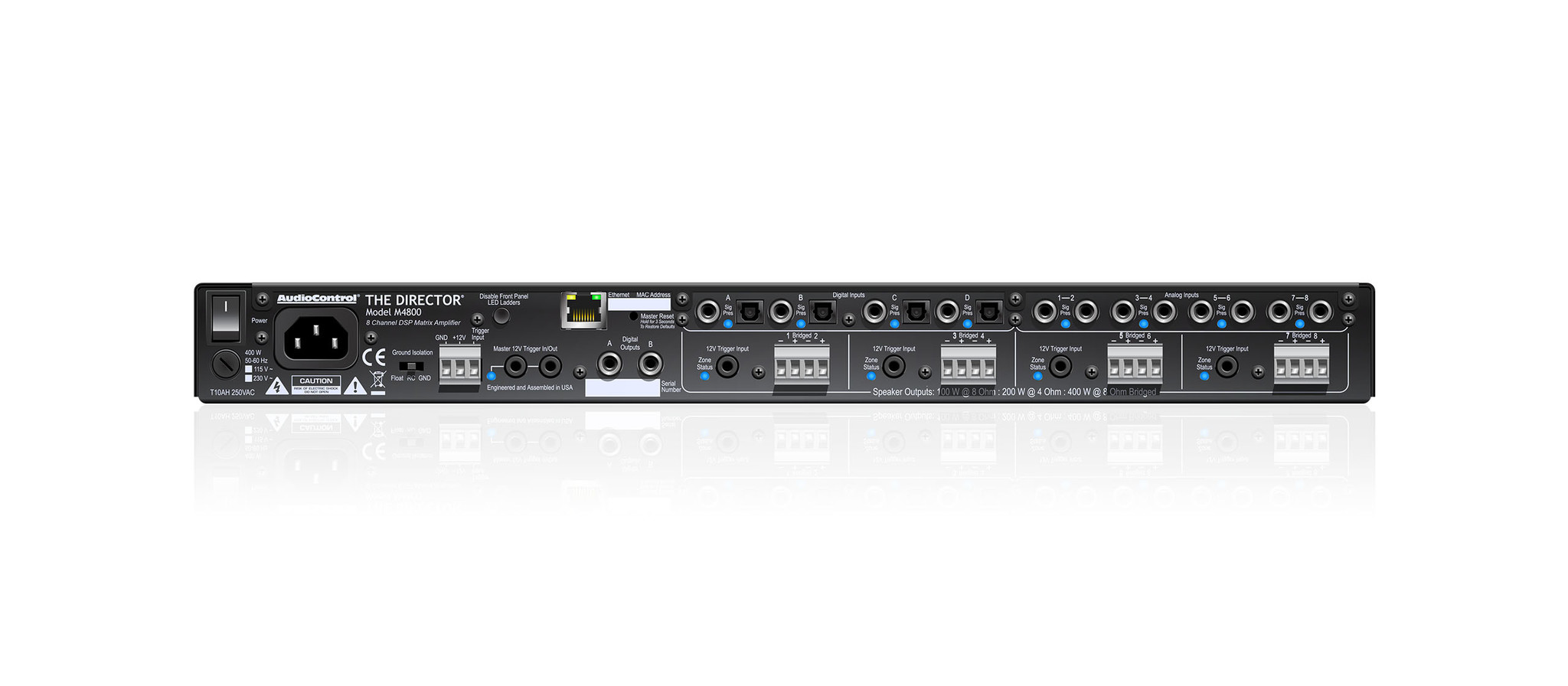

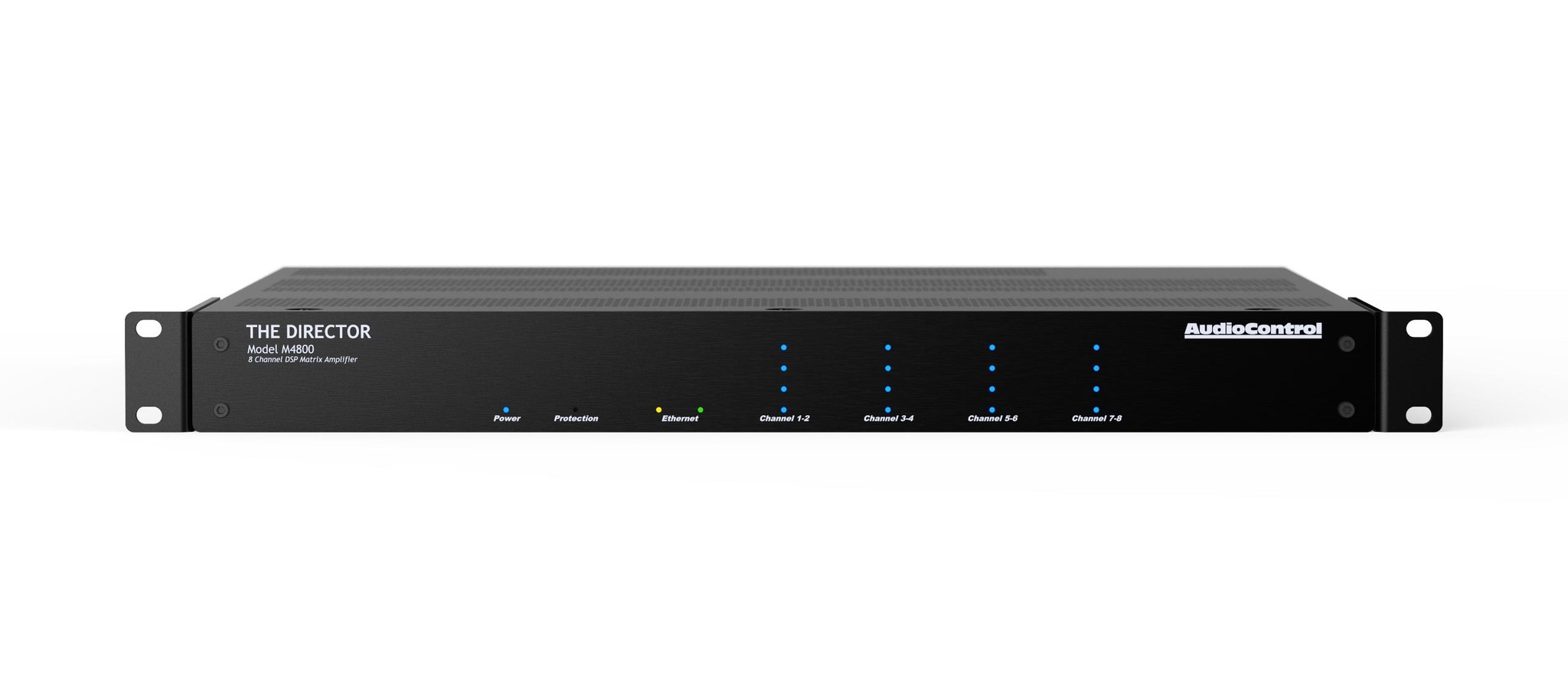

THE DIRECTOR M4800 8 CHANNEL/100W
Brand:
AUDIO CONTROL
|
| Article code | M4800 |
| EAN |
Information
FEATURES
- Network DHCP Signal Matrix Amplifier With Volume Control
- 8 Channels x 100 Watts at 8 Ohms (All Channels Driven)
- 8 Channels x 200 Watts at 4 Ohms (All Channels Driven)
- Bridgeable to 400 Watts of Bridged Power
- Digital Signal Processing (DSP) Performance
- Built-In Speaker Optimization Profiles
- Ethernet Port for Status Monitoring, Source Switching and 12 Volt Trigger Control
- Built in Matrix Delivering Analog or two digital inputs to be routed to any zone output on single or multiple amplifiers
- Network Programmable Graphic & Parametric Equalization with User Memories
- Assignable Names for All Zones & Amplifier
- Digital Signal Sense
- Programmable Electronic Crossover for Local Subwoofer Applications; Subsonic Filter
- AudioControl LightDrive Anti-Clipping Speaker Protection
- 4 Stereo Local Inputs plus 4 Digital Local Inputs
- Dual Digital Audio Bus Inputs
- Compact 1U Rack Space (Includes Rack Mount Brackets)

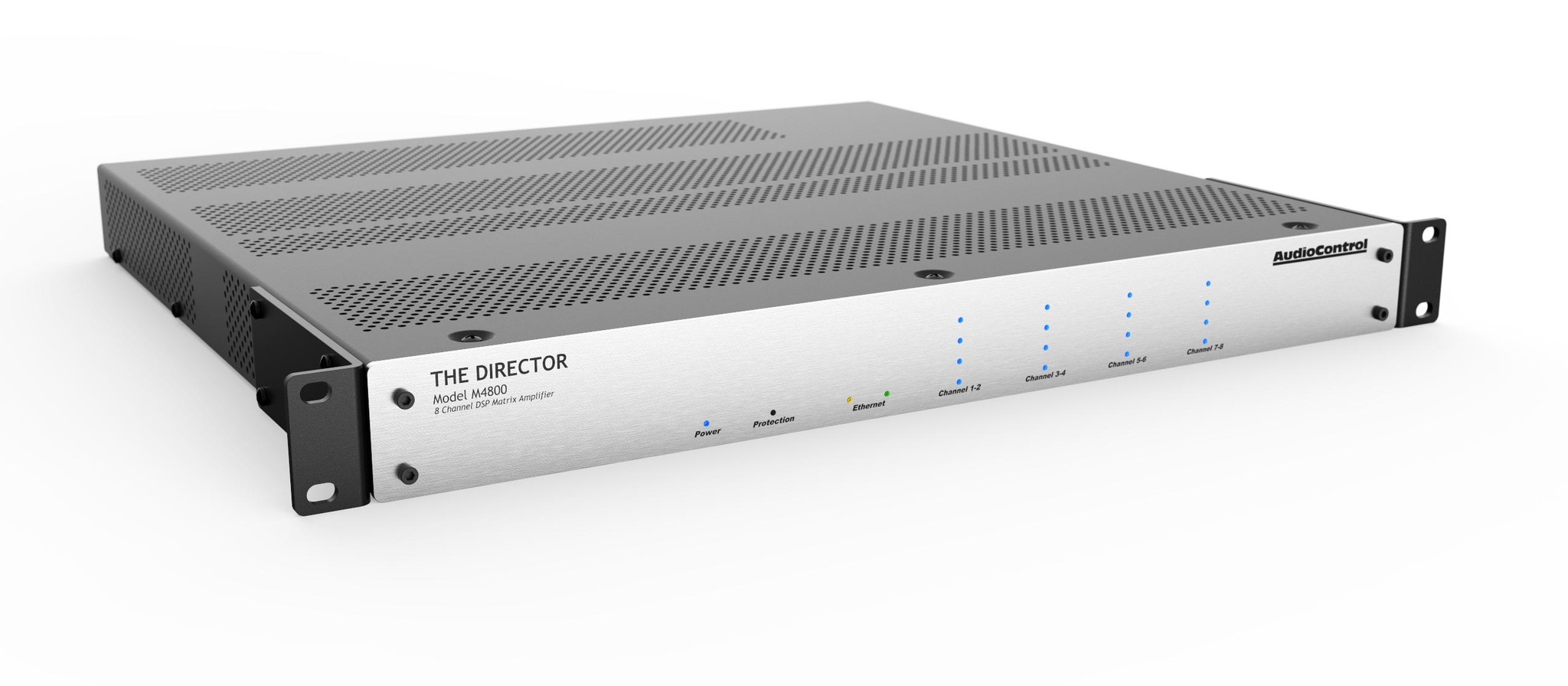

- Available in Brushed Aluminum or Expresso Black
- Home and Commercial Installations
SPECIFICATIONS
INPUTS
- Inputs: 4 Stereo Local Inputs, 4 Digital S/PDIF and Toslink Inputs
- Input Sensitivity: 1 Vrms for full output, level at maximum
- Input Gain: 30 dB
OUTPUTS
- Amplifier Channels: 8
- Power Output (8Ω): 100W per channel
- Power Output (4Ω): 200W per channel
- Power Output (8Ω Bridged Mono): 400W
- Minimum Speaker Load: 4Ω
- Preamp Audio Outputs: 2 Digital S/PDIF Outputs
PERFORMANCE
- Crosstalk: > 80 dB @ 1 kHz
- Damping Factor: >300
- Signal to Noise: >97 dB, A-wtd, ref full output
- Crosstalk: >80 dB @ 1 kHz
- DAC Specifications: 32 – 96 kHz sample rate, 16/24 bit depth
CONTROL
- Remote Power Trigger: +12 VDC or Dry Contact Closure
- Network Connection/Protocol: 10BaseT Ethernet TCP/IP
- Communication Protocol: HTTP or Telnet
WEIGHTS & DIMENSIONS
- Dimensions: 17” W x 15.8” D x 1.75” H (1U)
- Weight: 14.7 lbs (6.7 kg)
- IN THE BOX: The Director Model M4800, Speaker Connectors, Remote Connector, Power Cord, Manual, Warranty
